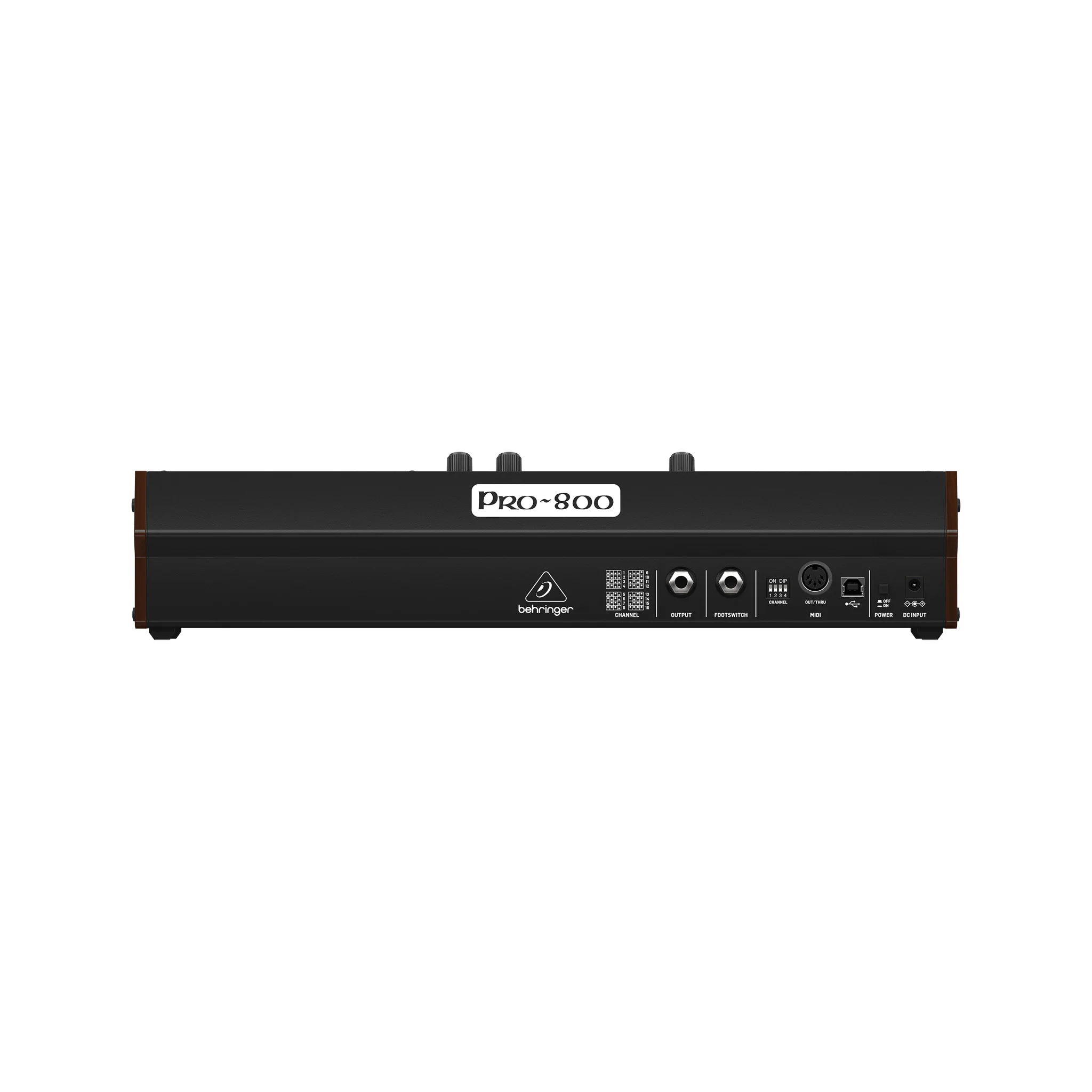

Behringer Pro-800 8-voice Polyphonic Analog Synthesizer, EU Plug

The Behringer Pro-800 8-Voice Polyphonic Analogue Synthesiser delivers rich, vintage-inspired sound with modern flexibility in a compact Eurorack format. Featuring dual VCOs per voice, a classic VCF, built-in arpeggiator and sequencer, and up to 400 program memories, it offers powerful sound design and performance capabilities. Ideal for lush pads, warm chords, and expressive leads, the Pro-800 is a versatile choice for producers and synth enthusiasts seeking authentic analogue tone with advanced control.

Features:

• Classic Polyphonic 8-voice synthesiser and authentic reproduction of the Prophet 600
• Pure analogue signal path based on authentic VCO, VCF and VCA designs
• 2 VCOs per voice for fat and detuned sounds
• Unison mode for fat 16 oscillator lead and bass sounds
• Up to 6 simultaneous oscillator shapes (OSC A: saw, triangle and pulse; OSC B: saw, triangle and pulse waveforms)
• Square waves with pulse width control and PWM via global LFO
• Classic 4-pole filter design with self-resonance capability
• Unique “POLY MOD” function allows OSC B and the filter envelope to modulate OSC A frequency plus filter cutoff
• Dedicated LFO with 6 waveform shapes to modulate the pulse width and pitch of oscillators A and B plus filter cutoff frequency
• 2 ADSR envelope generators for modulation of VCF and VCA
• Arpeggiator with up/down and key-assign modes
• Polyphonic 2-track sequencer for creative sequences
• 400 user program memories for storing all your favourite patches
• Additional noise generator found in the ultra-rare Japanese Version called MMI 6E3.1
• Polyphonic glide for everything from subtle portamento to extreme effects
• Chord memory for transposing a chord across the keyboard
• Comprehensive MIDI implementation (including NRPN/CC control of all parameters and bulk load/save)

Specifications:

• No. of Voices: 8
• Type: Analogue
• Type Oscillators: 2 x 3340 per voice
• Oscillators: 16 (32.70 Hz to 8372.02 Hz across 4 ranges)
• LFO: 1 (0.08 Hz to 20 Hz)
• VCF: 1 x 4-pole low pass (24 dB/oct. slope)
• Envelopes: VCF, VCA
• Connectivity: Output ¼" TS, unbalanced (max. +5.0 dBu), Audio Out 1/8" TS, unbalanced (max. +20.0 dBu), Footswitch ¼" TS unbalance, Headphones 1/8" TRS, unbalanced (max. 7.5 mW @ 32 Ohm), MIDI In Out/Thru 2 x 5-pin DIN/ 16 channels, USB 2.0, type B, Sync In TS 3.5 mm 1PPS, 2PPQ, 24PPQ, 48PPQ, Filter CV In TS 3.5 mm 0 V to +10 V
