Behringer UB-Xa D Analog Synthesizer, EU Plug

The Behringer UB-Xa D Analog Synthesizer is a powerful 16-voice, multi-timbral polyphonic desktop synth that captures the essence of classic analog sound with modern flexibility. Featuring dual VCFs and 8 vintage modes, it delivers rich, warm tones and versatile sound shaping for everything from lush pads to punchy leads. Designed for studio and stage, the UB-Xa D combines iconic analog character with advanced control, making it an ideal choice for producers and performers seeking timeless synth performance.

Features:

• Analog polyphonic synthesizer and authentic reproduction of classic OB-Xa including original factory patches
• Vintage mode allows selection of 8 synthesizer signatures including OB-Xa, OB-8 and more
• 16 voices with 2 VCOs per voice and oscillator sync mode
• Multi-timbral capability allows splitting or layering 2 different sounds
• VCOs and VCFs based on reproductions of original 3340 and 3320 semiconductor designs
• Both VCOs generate sawtooth, triangle or square waveforms with variable pulse width
• Selectable dual-slope 12/24 dB analog low-pass filter per voice with adjustable resonance

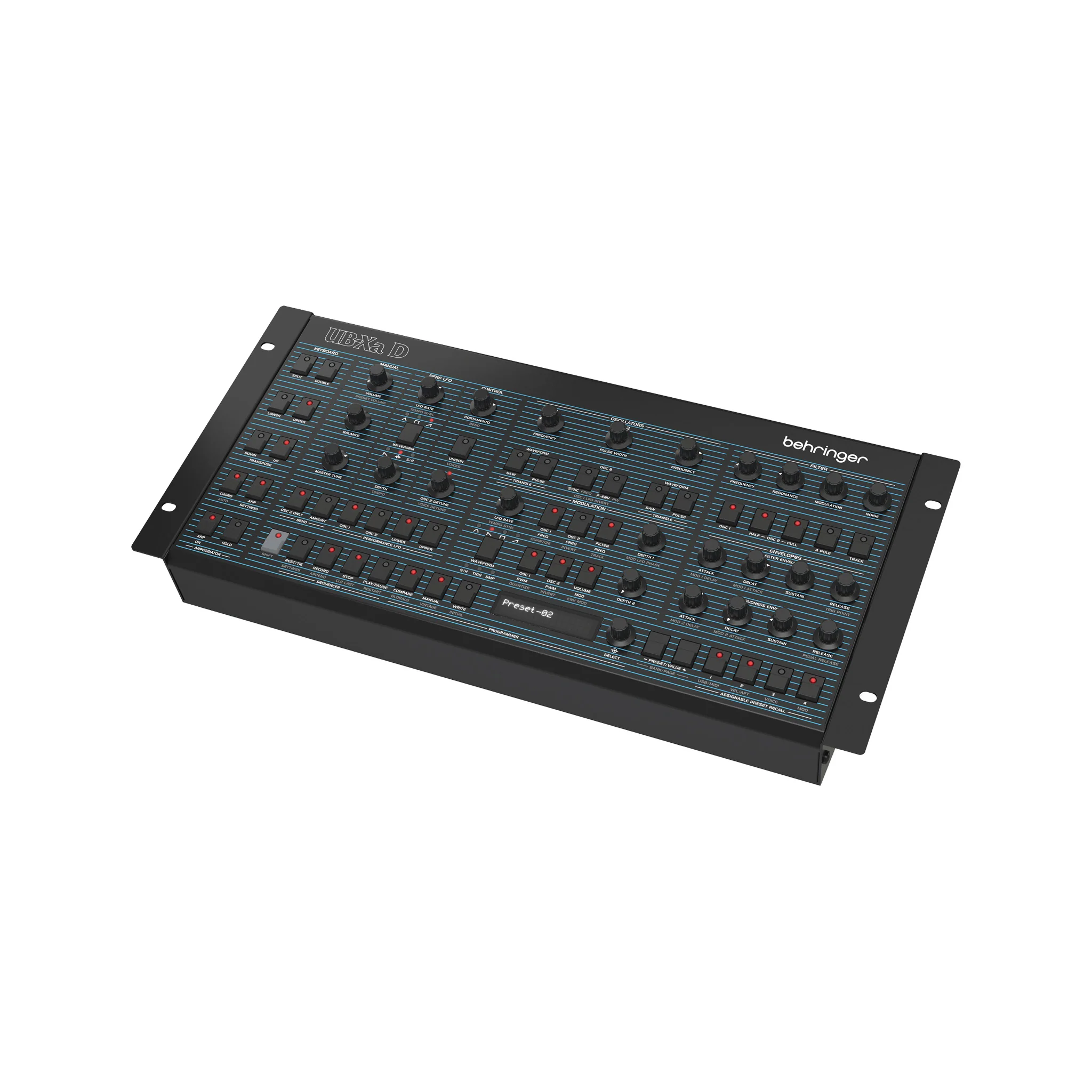

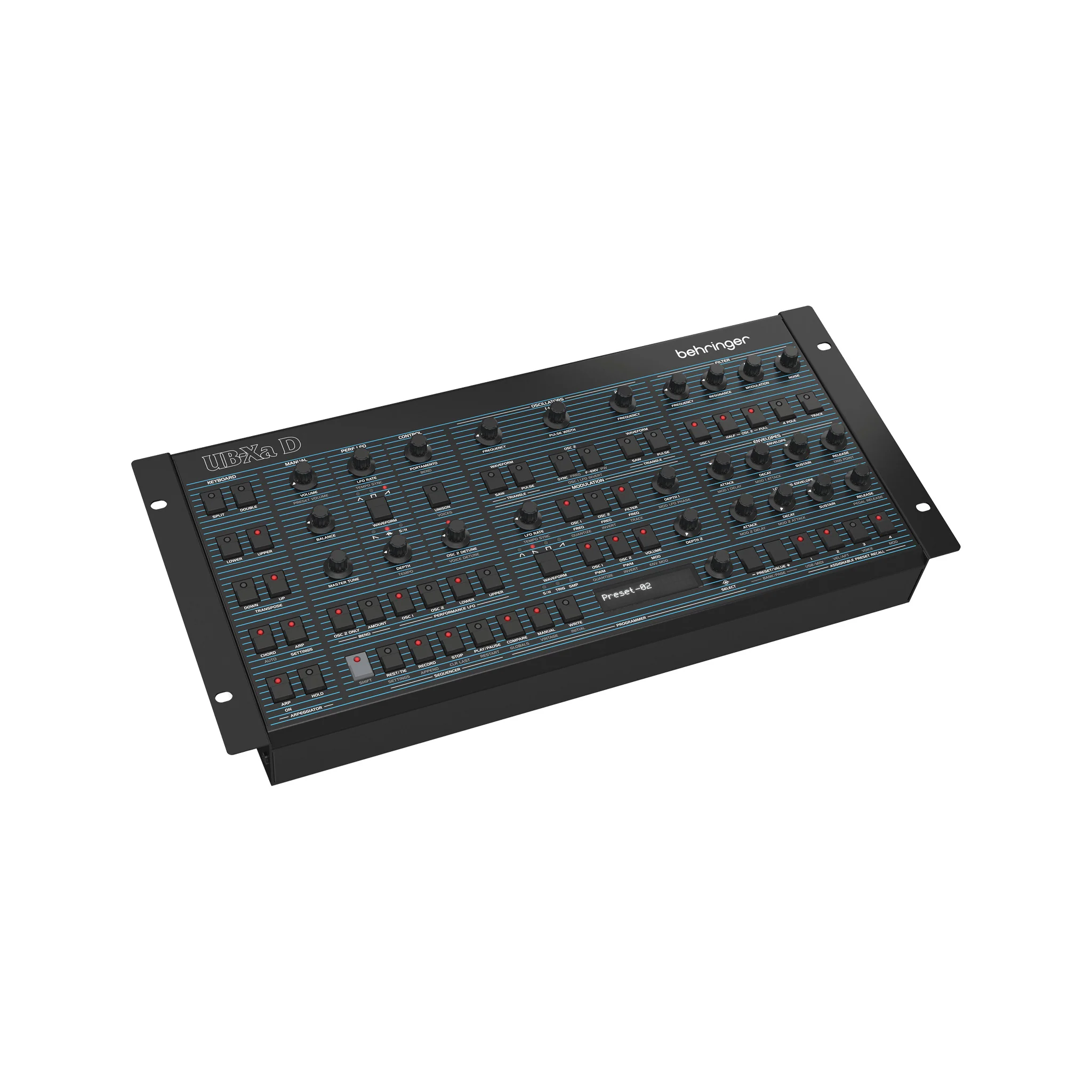

• Desktop version for stage performance or rack mount operation with rack mount brackets included
• Flexible 8-channel modulation matrix for dramatic expansion of sonic possibilities
• Dual-layer arpeggiator and sequencer with real-time sequence transpose
• Velocity and after-touch can be optionally used for more expressive performance
• 2 dedicated LFOs with 7 waveform shapes for modulation of pulse width, oscillator pitch and filter cutoff frequency
• 2 ADSR generators per voice for control of VCF and VCA
• Stereo VCA per voice to allow control over voice/layer panning
• 26 rotary controls give direct and real-time access to all important parameters
• High-quality LCD Display with encoder for rapid parameter editing
• Assignable preset recall switches for immediate program selection
• Spring-loaded pitch and assignable modulation paddles provide total hands-on performance
• 512 user program memories with “compare and match” feature to quickly match all analog controls to stored program values
• Fully servo-balanced outputs for highest signal integrity
• CV/pedal inputs for connection to expression pedals and footswitches
• MIDI Polyphonic Expression (MPE) to enable multidimensional controllers and multiple parameters per note
• Comprehensive MIDI implementation (including NRPN/ CC control of all parameters and bulk load/save)

Specifications:

• No. of Voices: 16-Voice Bi-Timbral
• Type: Analogue
• Oscillators: 32
• LFO: 2
• VCF: 1 low pass, 2-pole or 4-pole (12dB or 24dB/ oct slope), switchable
• Envelopes: VCA, VCF

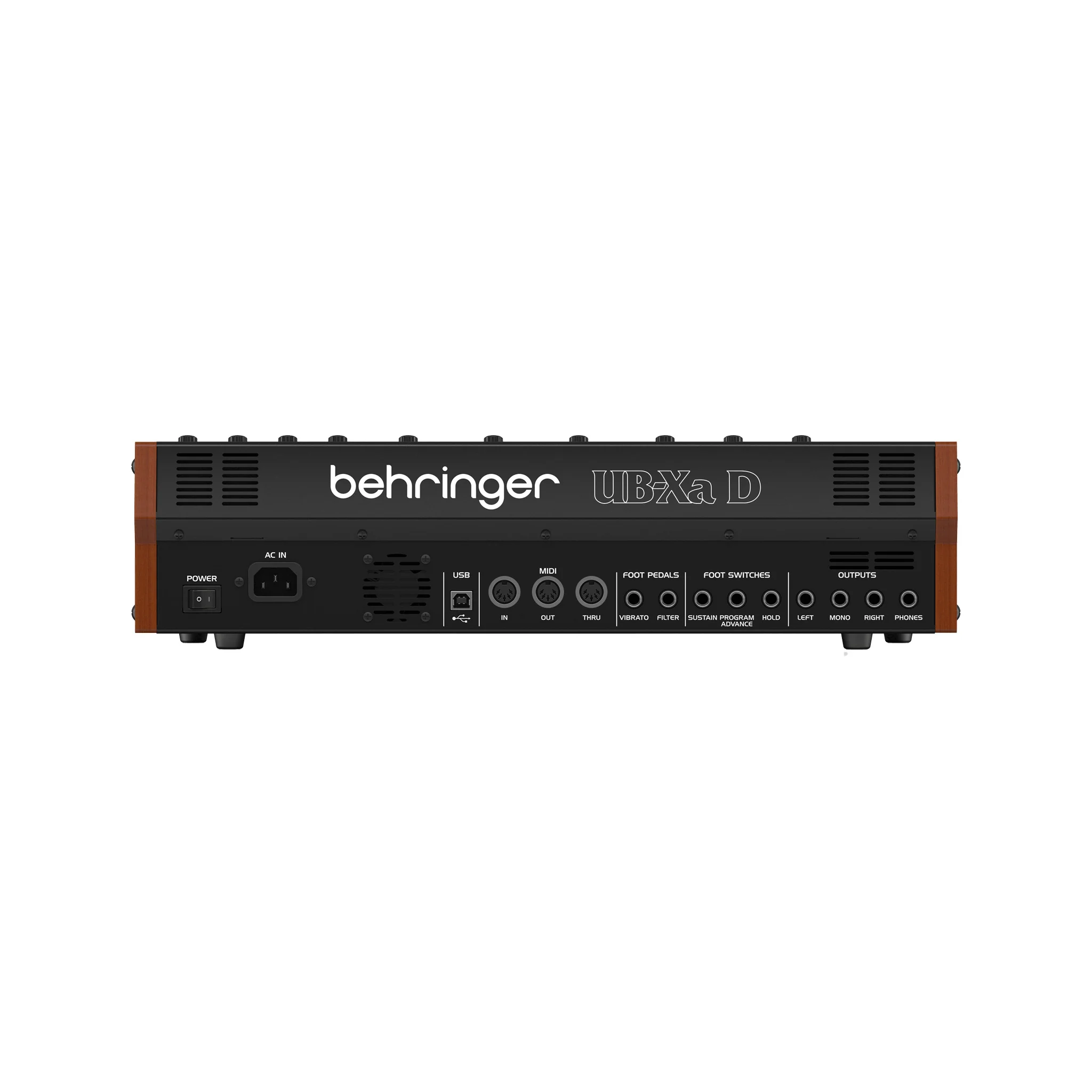

• Connectivity: MIDI in/thru - 5-pin DIN / 16 channels, USB (MIDI) - USB 2.0 type B, Main Output - 2 x 1/4" TRS balanced max. 22 dBu, Headphone Out - 1/4" TRS stereo max 25mW dBu, Foot Pedal - 1/4" TRS balanced (Vibrato&Filter), Footswitches - 1/4" Mono (Sustain, Program Advance, Hold)
• USB: Class-compliant USB 2.0, type B
• System Requirements: Windows 7 or higher, Mac OS X 10.10 or higher
• Power: Standard IEC receptacle
• Dimensions: (HxWxD) 119 x 224.1 x 460.75 mm / 4.68 x 8.83 x 18.14"
• Weight: 4.8 kg (10.67 lbs)
