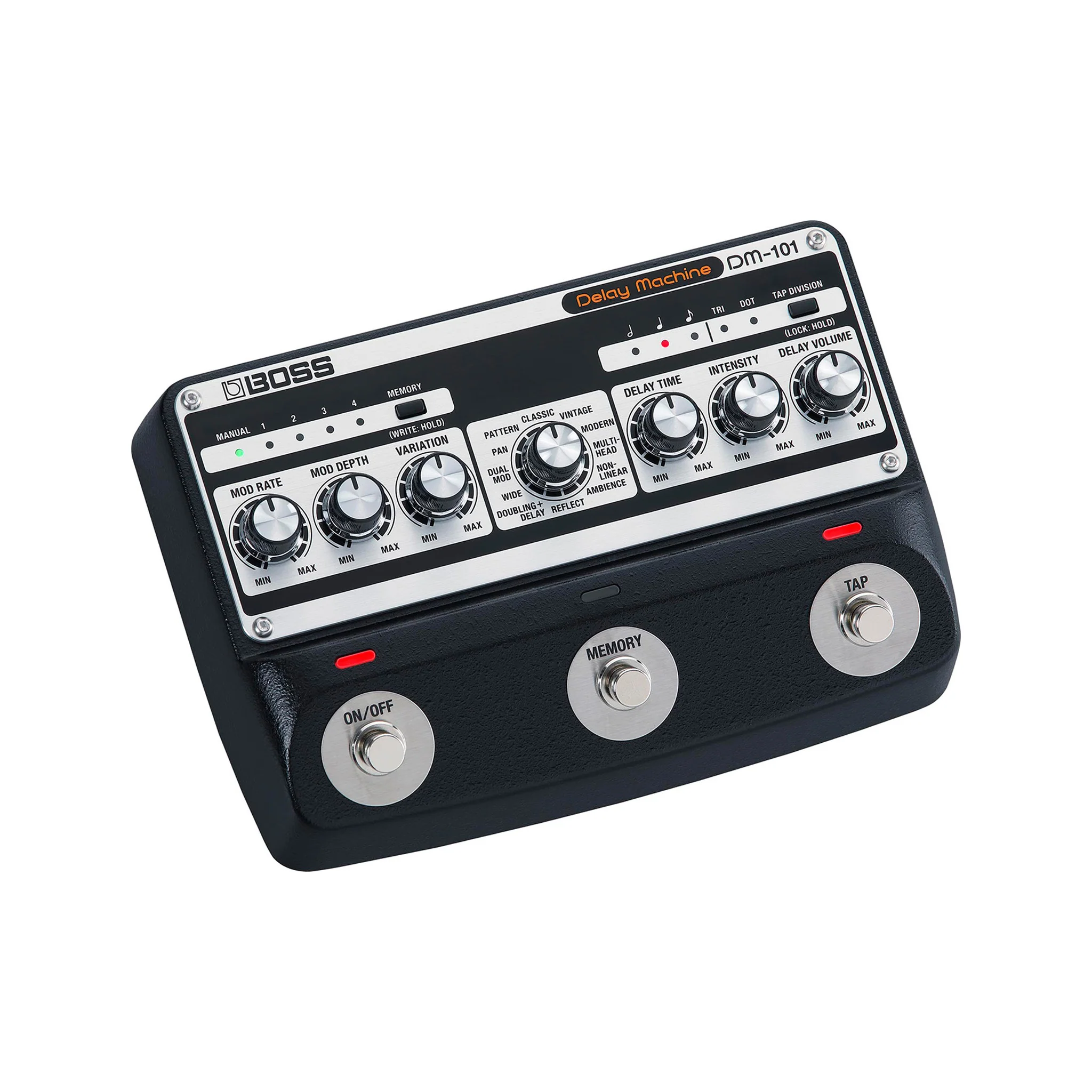

BOSS DM-101 Delay Machine Pedal

Classic sound meets modern power with the DM-101 Delay Machine, the ultimate analogue delay. Driven by eight BBDs under smart CPU control, this inspiring pedal delivers 12 unique modes, stereo operation, and a wide array of tonal colours, all while maintaining 100 percent analogue signal processing throughout. And with 127 user memories, tap tempo, carryover, MIDI, and more, the DM-101 brings you the features and versatility of an advanced digital pedal—but with the vibrant, characterful sound that’s only possible with authentic analogue BBD circuitry.

Features:

• The ultimate analogue delay pedal realised with advanced BOSS technology
• Fully analogue BBD audio circuitry shaped by precision digital CPU control
• Warm, saturated, and highly musical tone
• Twelve modes deliver a wide range of mono and stereo delay textures, created using up to eight internal BBDs
• Stereo output with flexible signal routing options
• Adjustable modulation rate and depth with dedicated knobs
• Variation knob for controlling multiple parameters that are unique to each mode
• Selectable carryover for maintaining delay trails when the effect is bypassed
• MIDI I/O on mini TRS connectors
• Tap tempo function and tap division switch for creating rhythmic delays
• Four onboard memories plus the current panel settings
• 127 user memories accessible via MIDI program change
• Expandable control via external footswitches, an expression pedal, or MIDI

Specifications:

• Memory: 127 + Manual
• Delay Mode: Classic, Vintage, Modern, Multi-Head, Non-linear, Ambience, Reflect [Stereo], Doubling+Delay [Stereo], Wide [Stereo], Dual Mod [Stereo], Pan [Stereo], Pattern [Stereo]
• Bypass: Buffered Bypass
• Controls: ON/OFF switch, MEMORY switch, TAP switch, MOD RATE knob, MOD DEPTH knob, VARIATION knob, MODE knob, DELAY TIME knob, INTENSITY knob, DELAY VOLUME knob, MEMORY button, TAP DIVISION button
• Connectors: INPUT jack, OUTPUT A/MONO jack, OUTPUT B jack: 1/4-inch phone type, CTL 1, 2/EXP jack: 1/4-inch TRS phone type, MIDI (IN, OUT) jacks: Stereo miniature phone type, DC IN jack, USB port: USB micro B-type (program update only)
• Power Supply: AC adaptor
• Current Draw: 260 mA
• Accessories: AC adaptor, Owner’s Manual, Leaflet (“USING THE UNIT SAFELY“, “IMPORTANT NOTES“ and “Information“), Rubber foot x 4
• Dimensions: 192mm (W) x 133mm (D) x 52mm (H)
• Weight: 830 g (1 lb 14 oz)
