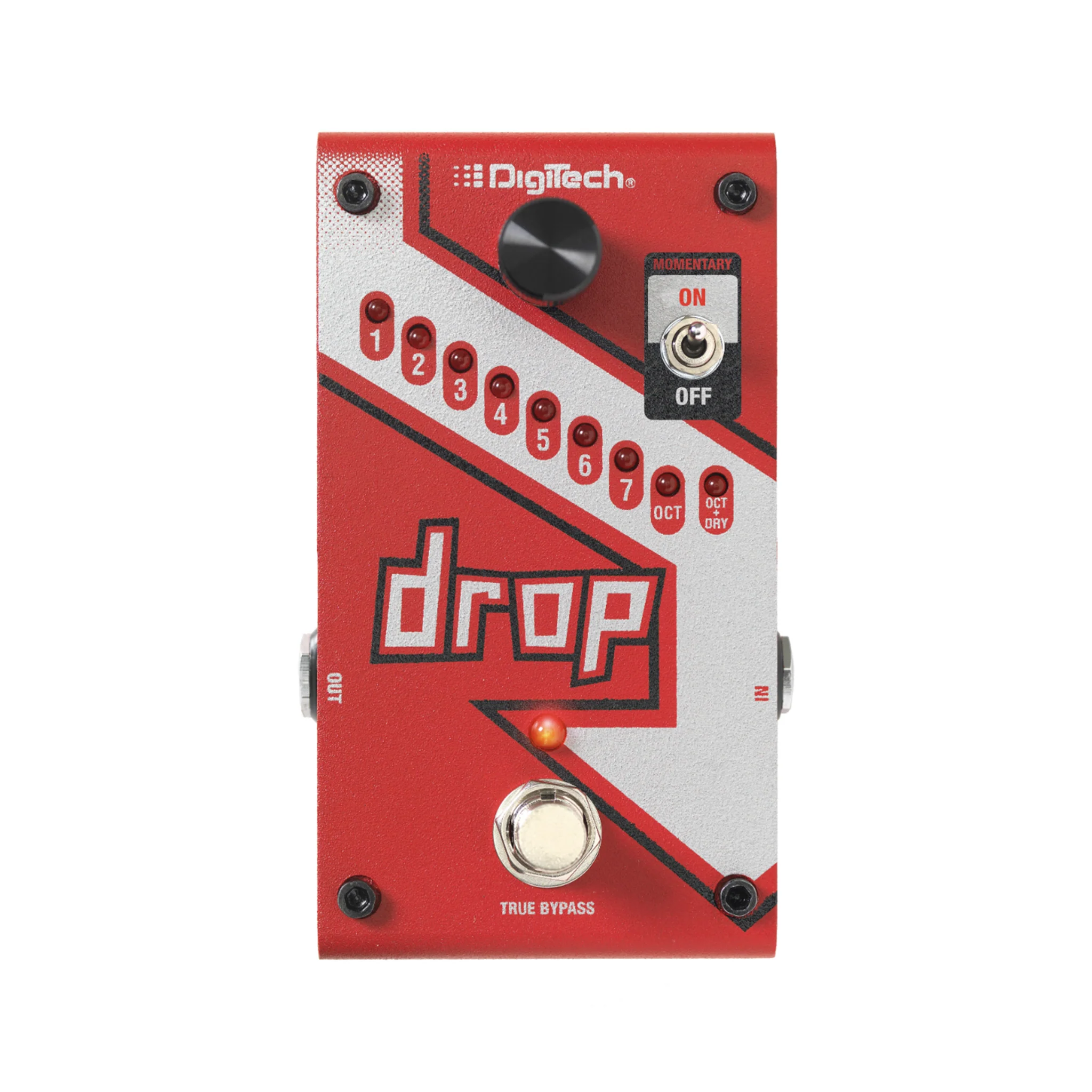

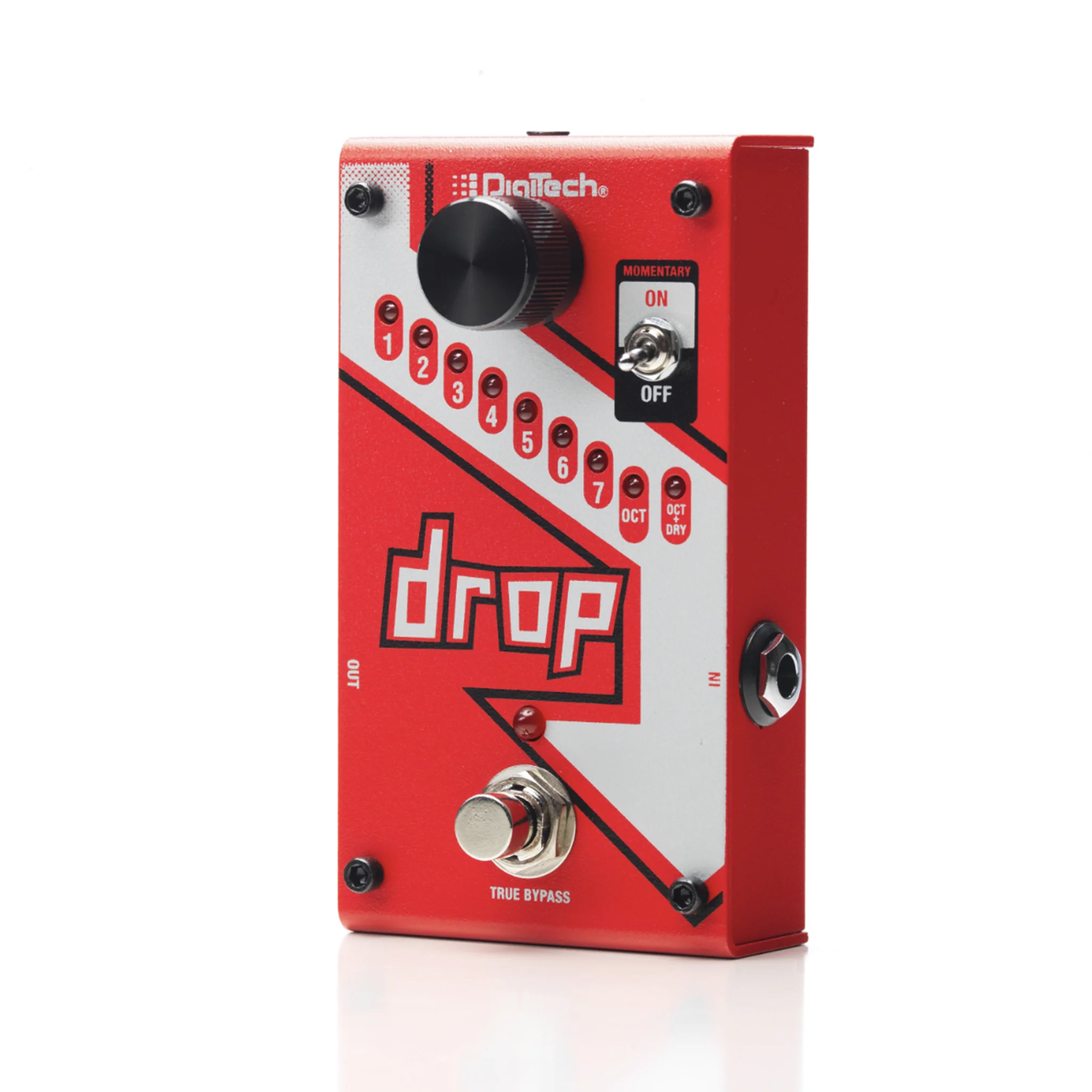

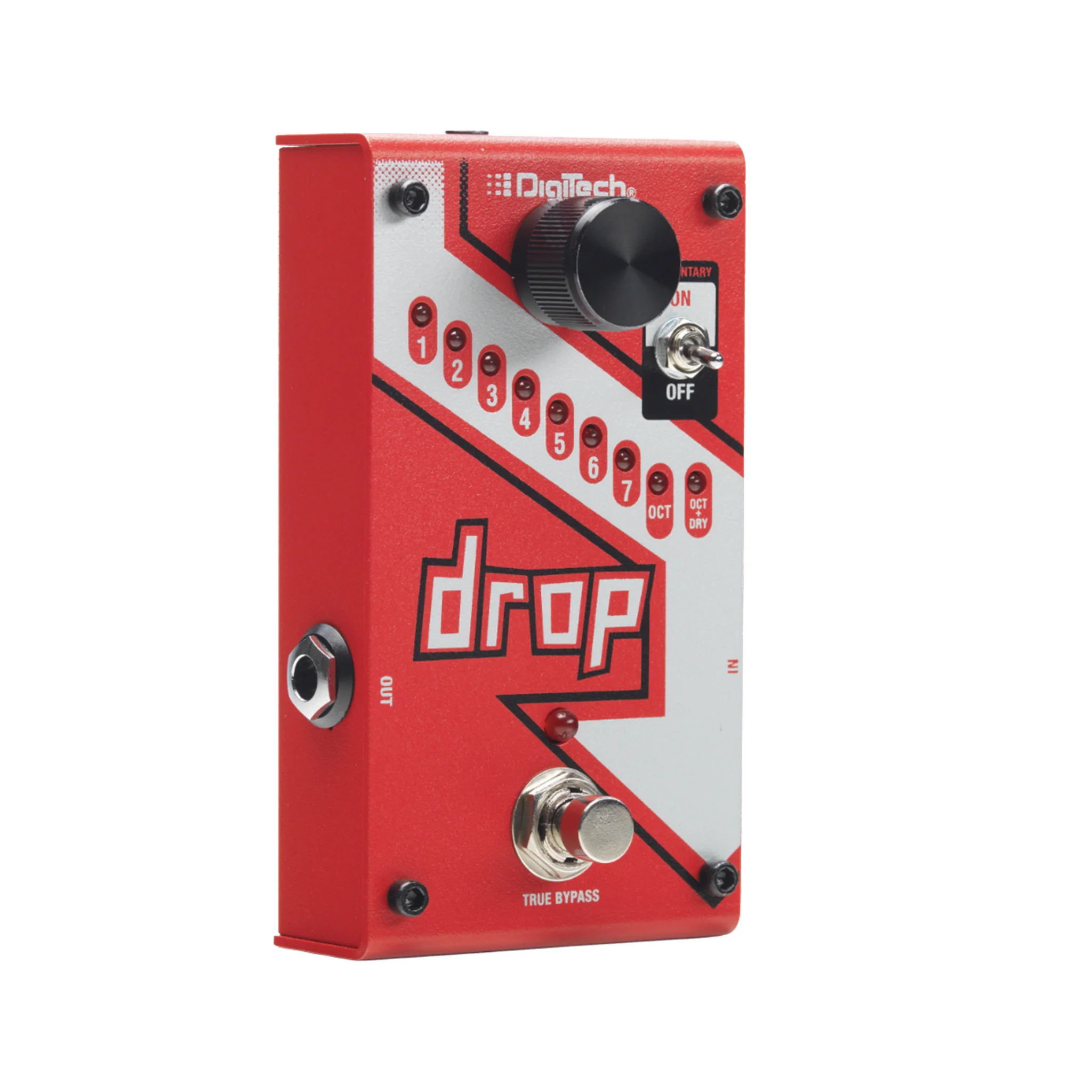

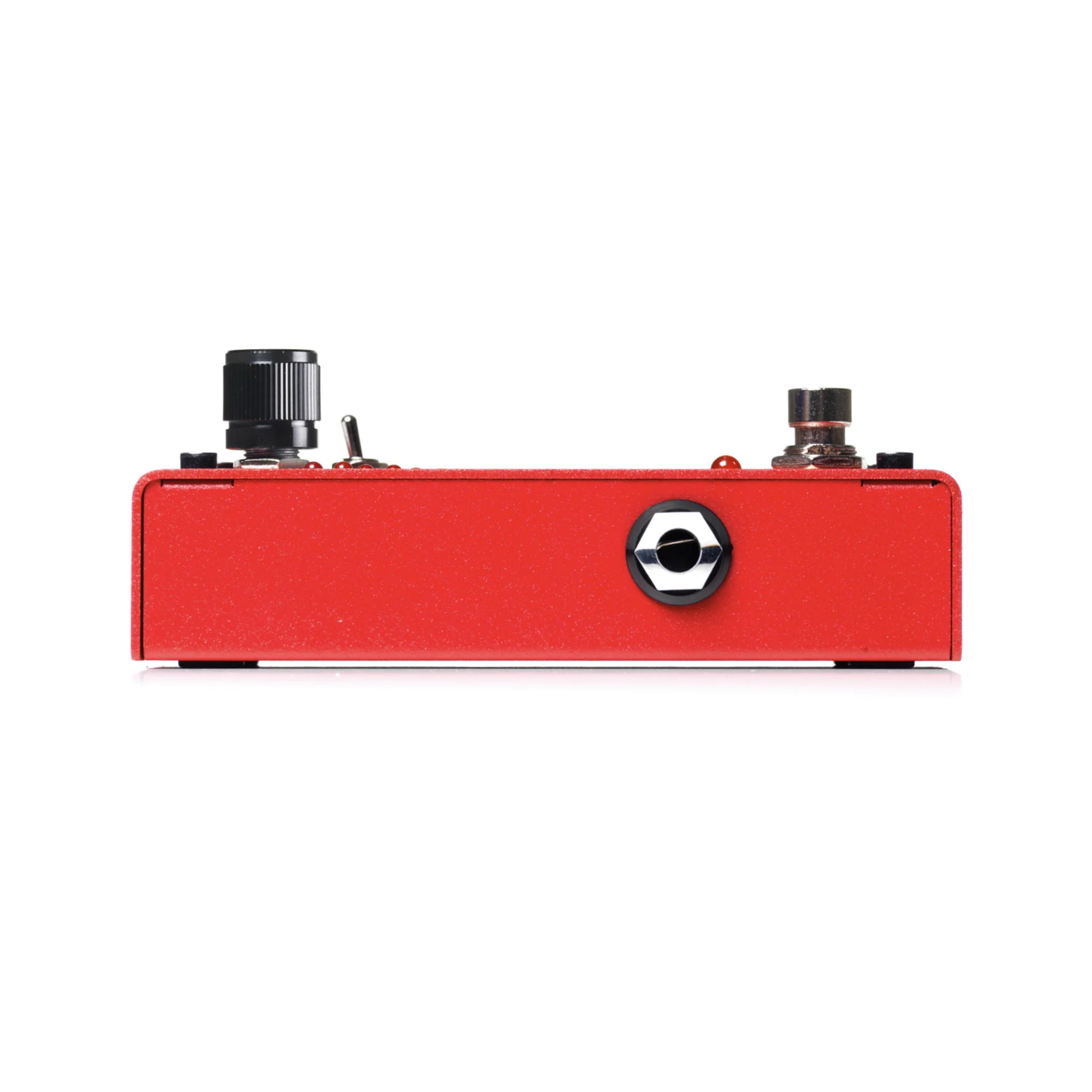

Digitech The Drop Polyphonic Drop-Tune Guitar Effects Pedal
The DigiTech Drop is a dedicated polyphonic drop tune pedal that allows you to drop your tuning from one semitone all the way down to a full octave. Get a down-tuned chunk without having to change guitars! The Drop also features a momentary/latching switch. With the switch set to momentary, you can turn the Drop into a true performance pedal. Fast trills and roller-coaster pitch dips are at the tip of your toes.
Specifications:
- D/A Conversion: 24-bit
- Drop Tune Range: 1-7 Semitones Down, Octave Down, Octave Down + Dry
- Power Consumption: 2.3 Watts (< 250 mA @ 9 VDC)
- Power Adapter: 9 VDC External Adapter
- Sample Rate: 44.1 kHz
- Frequency Response: 20 Hz-11 kHz (Effect Enabled)
- Signal to Noise Ratio: > -105 dB (A weighted); ref = max level, 22 kHz bandwidth
- THD: 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
- Dimensions: 1.75" H x 2.875" W x 4.75" L
- Output Type: 1/4” Unbalanced TS
- Max Output Level: +10 dBu
- Output Impedance: 1 kΩ
- Instrument Input Type: 1/4” Unbalanced TS
- Max Input Level: +5 dBu
- Input Impedance: 1 MΩ
More Images
Digitech The Drop Polyphonic Drop-Tune Guitar Effects Pedal
The DigiTech Drop is a dedicated polyphonic drop tune pedal that allows you to drop your tuning from one semitone all the way down to a full octave. Get a down-tuned chunk without having to change guitars! The Drop also features a momentary/latching switch. With the switch set to momentary, you can turn the Drop into a true performance pedal. Fast trills and roller-coaster pitch dips are at the tip of your toes.
Specifications:
- D/A Conversion: 24-bit
- Drop Tune Range: 1-7 Semitones Down, Octave Down, Octave Down + Dry
- Power Consumption: 2.3 Watts (< 250 mA @ 9 VDC)
- Power Adapter: 9 VDC External Adapter
- Sample Rate: 44.1 kHz
- Frequency Response: 20 Hz-11 kHz (Effect Enabled)
- Signal to Noise Ratio: > -105 dB (A weighted); ref = max level, 22 kHz bandwidth
- THD: 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
- Dimensions: 1.75" H x 2.875" W x 4.75" L
- Output Type: 1/4” Unbalanced TS
- Max Output Level: +10 dBu
- Output Impedance: 1 kΩ
- Instrument Input Type: 1/4” Unbalanced TS
- Max Input Level: +5 dBu
- Input Impedance: 1 MΩ
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The DigiTech Drop is a dedicated polyphonic drop tune pedal that allows you to drop your tuning from one semitone all the way down to a full octave. Get a down-tuned chunk without having to change guitars! The Drop also features a momentary/latching switch. With the switch set to momentary, you can turn the Drop into a true performance pedal. Fast trills and roller-coaster pitch dips are at the tip of your toes.
Specifications:
- D/A Conversion: 24-bit
- Drop Tune Range: 1-7 Semitones Down, Octave Down, Octave Down + Dry
- Power Consumption: 2.3 Watts (< 250 mA @ 9 VDC)
- Power Adapter: 9 VDC External Adapter
- Sample Rate: 44.1 kHz
- Frequency Response: 20 Hz-11 kHz (Effect Enabled)
- Signal to Noise Ratio: > -105 dB (A weighted); ref = max level, 22 kHz bandwidth
- THD: 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
- Dimensions: 1.75" H x 2.875" W x 4.75" L
- Output Type: 1/4” Unbalanced TS
- Max Output Level: +10 dBu
- Output Impedance: 1 kΩ
- Instrument Input Type: 1/4” Unbalanced TS
- Max Input Level: +5 dBu
- Input Impedance: 1 MΩ
