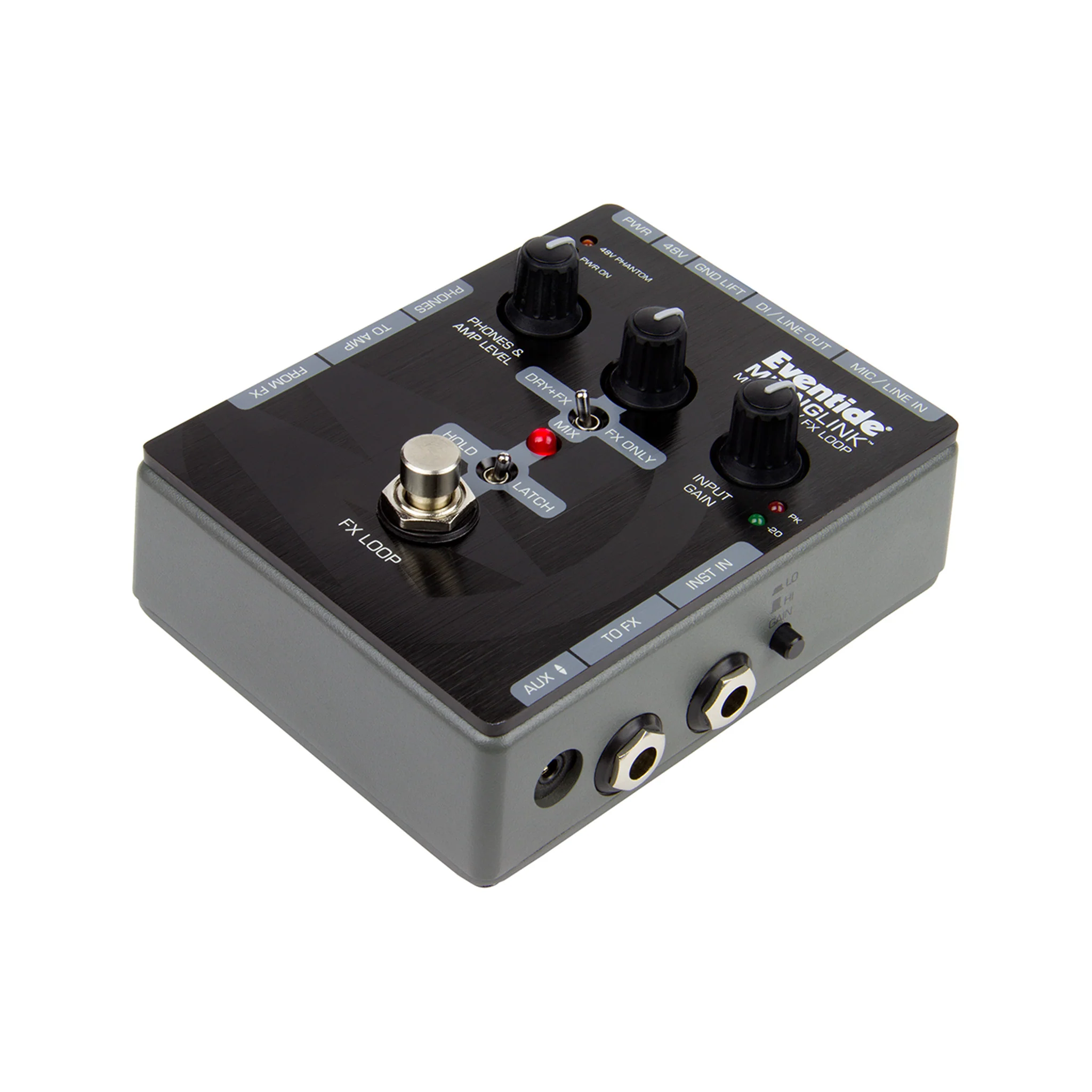

Eventide Mixing Link Mic Preamp with FX Loop

A stompbox-size audio toolkit for on-stage, in the studio, and everywhere in between. Includes a quiet high gain mic-pre, 48V phantom power, and enough I/O and control for applications such as FX Loop for microphone signal processing (vocals, horns, strings, etc), signal splitting, and combining, complete re-amp setup, impedance, and gain matching, mixing and more.

Features:

• Effects loop send and return accommodates balanced and unbalanced signals and interfaces with consoles or guitar pedals easily
• Latching or momentary footswitch control of effects loop for performance effects
• Works with a wide range of microphones including condenser and ribbon microphones with up to 65dB of clean gain
• Aux I/O connection supporting stereo input and mobile device send level
• Guitar amp output and headphone monitor output with separate master volume control
• International universal 9VDC power supply included, or 9V battery, or can be powered by the PowerMax
• 48V phantom power for condenser microphones
• Balanced XLR output which supports DI and Line levels (-10dB to +18dBu)
• Instrument and balanced line level inputs (-10dB to +18dBu)
• Versatile mix control supports 3 modes of operation - 100% microphone with effects blended in, or microphone/effects balance control, or 100% FX (with no microphone)

Specifications:

• Power: 9V DC @ 200mA / Center Negative (-), 5.5mm/2.1mm jack (BOSS standard)
• Dimensions: 3.6” (H) x 2.65” (W) x 1.5” (D)
• Weight: 0.43 kg / 0.96 lbs
