MXR M76 Studio Compressor Guitar Effects Pedal

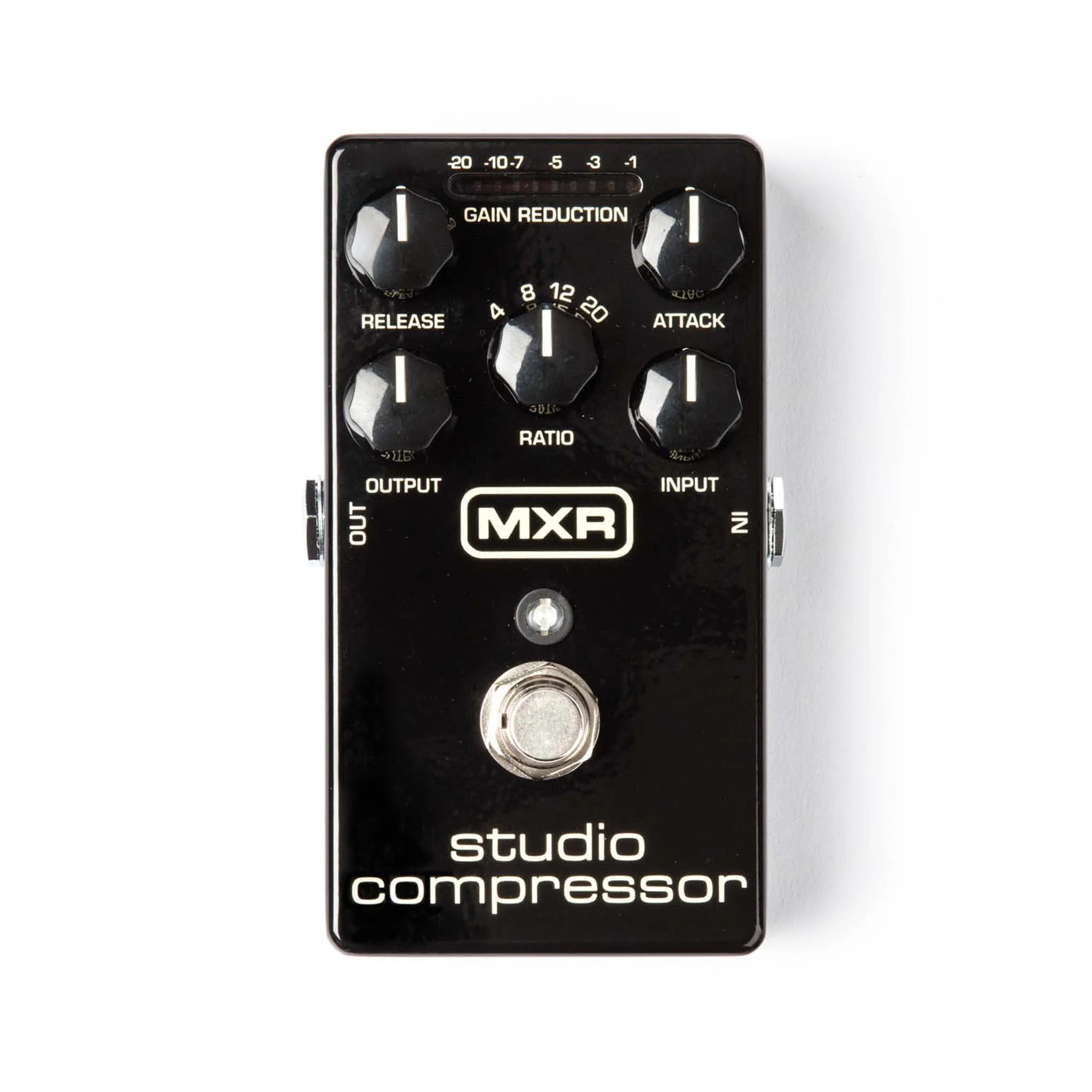

The MXR design team took a classic recording studio fixture and stuffed it into a pedalboard-friendly box. The Studio Compressor features Attack, Release, Ratio, Input, and Output controls so you can fine-tune your compression level-from subtle to squashing-right on stage with visual feedback from a bright LED gain-reduction status meter. Constant Headroom Technology provides tons of headroom for clear, transparent performance that's as dynamic as you need it to be. It's all packed into a durable, lightweight aluminum-housing that's the size of a Phase 90.
Specifications:
- Input Impedance: 1 MΩ
- Output Impedance: 600 Ω
- Max Input Level: +14 dBV
- Max Output Level: +8.5 dBV
- Noise Floor: -90 dBV
- THD: < 0.5%
- Gain: 31 dB
- Compression Ratio: 4:1, 8:1, 12:1, 20:1
- Attack Time: 20 μs to 800 μs
- Release Time: 50 ms to 1.1 s
- Bypass: True Hardwire
- Current Draw: 14 mA (LEDs Off), 19mA (LEDs On)
- Power Supply: 9 Volts DC

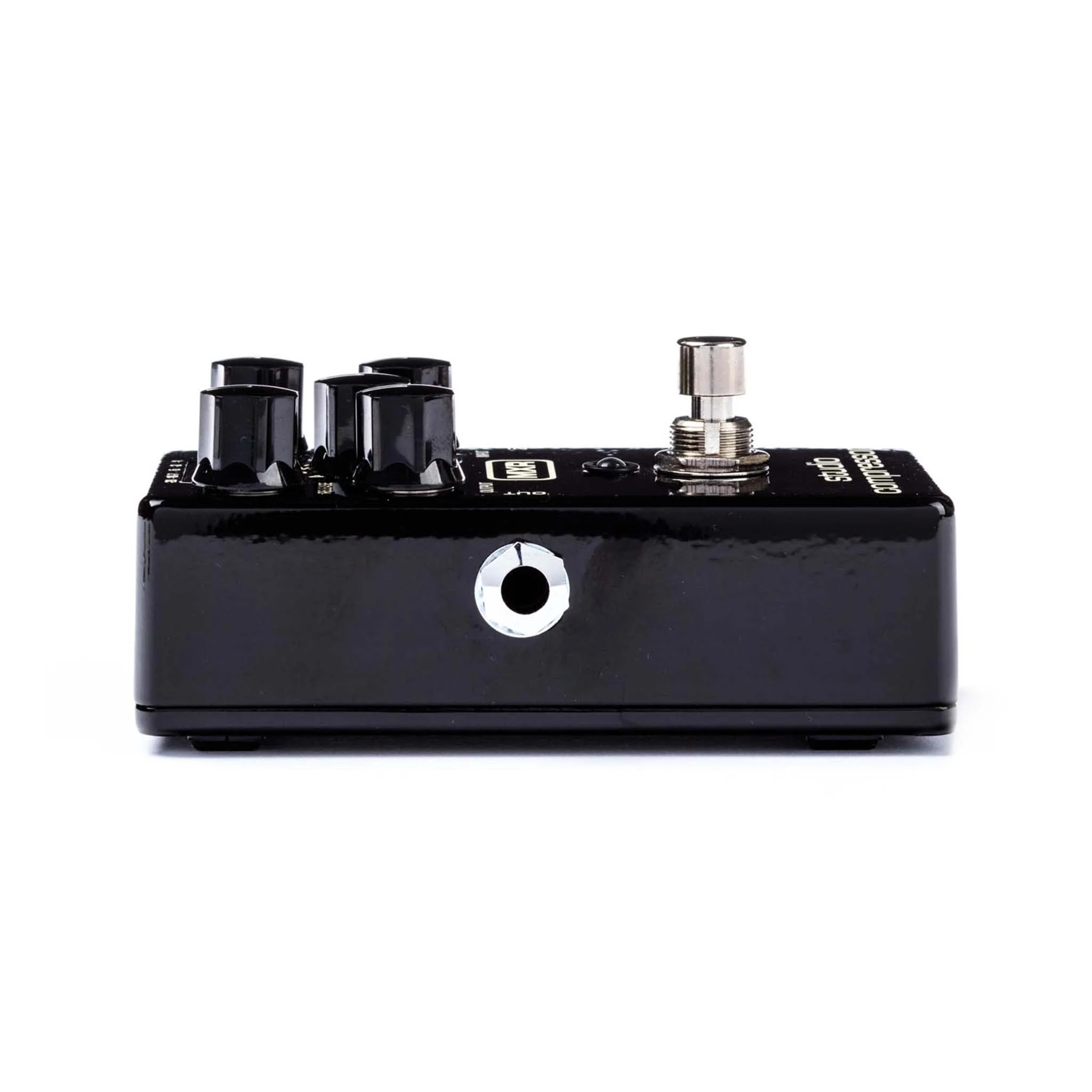

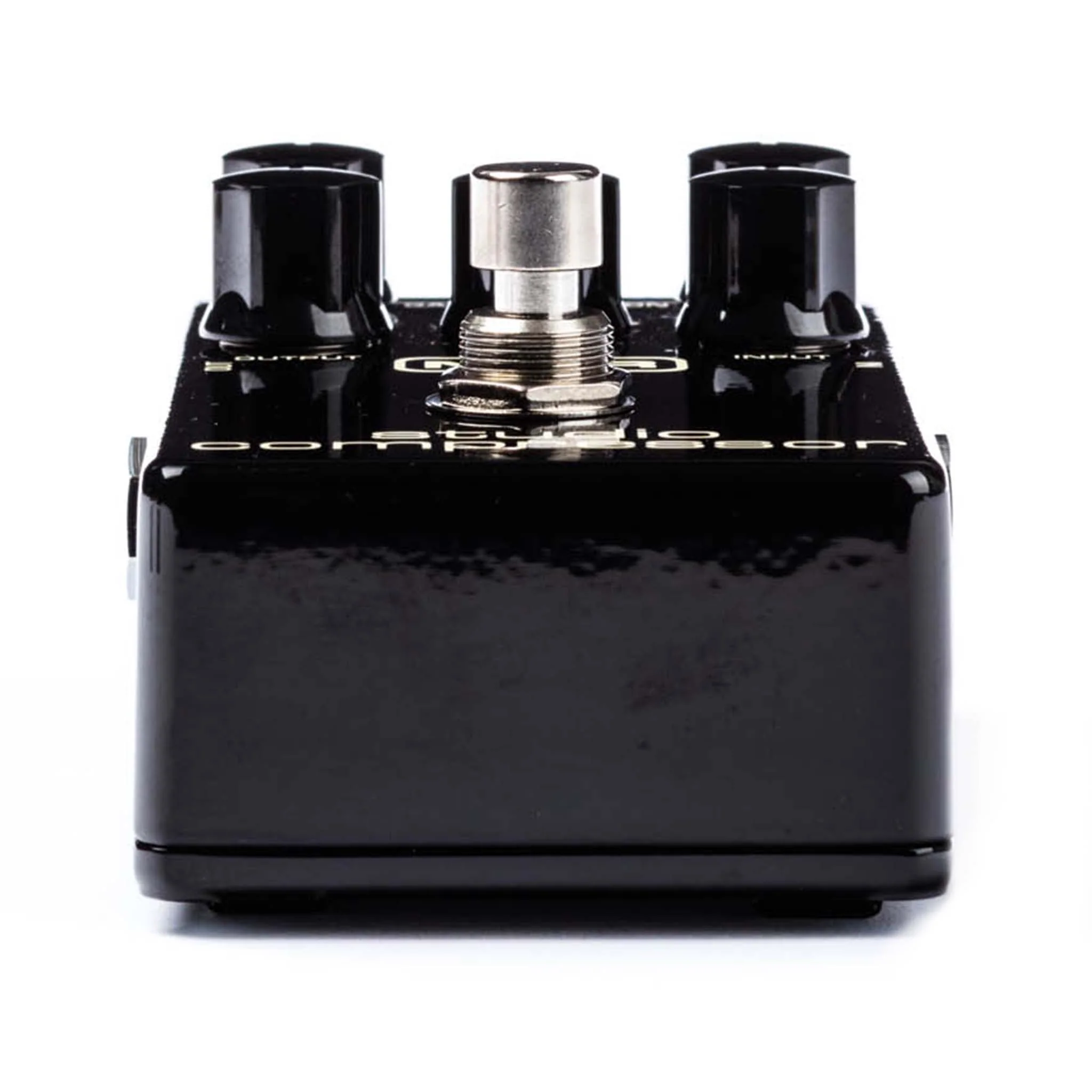

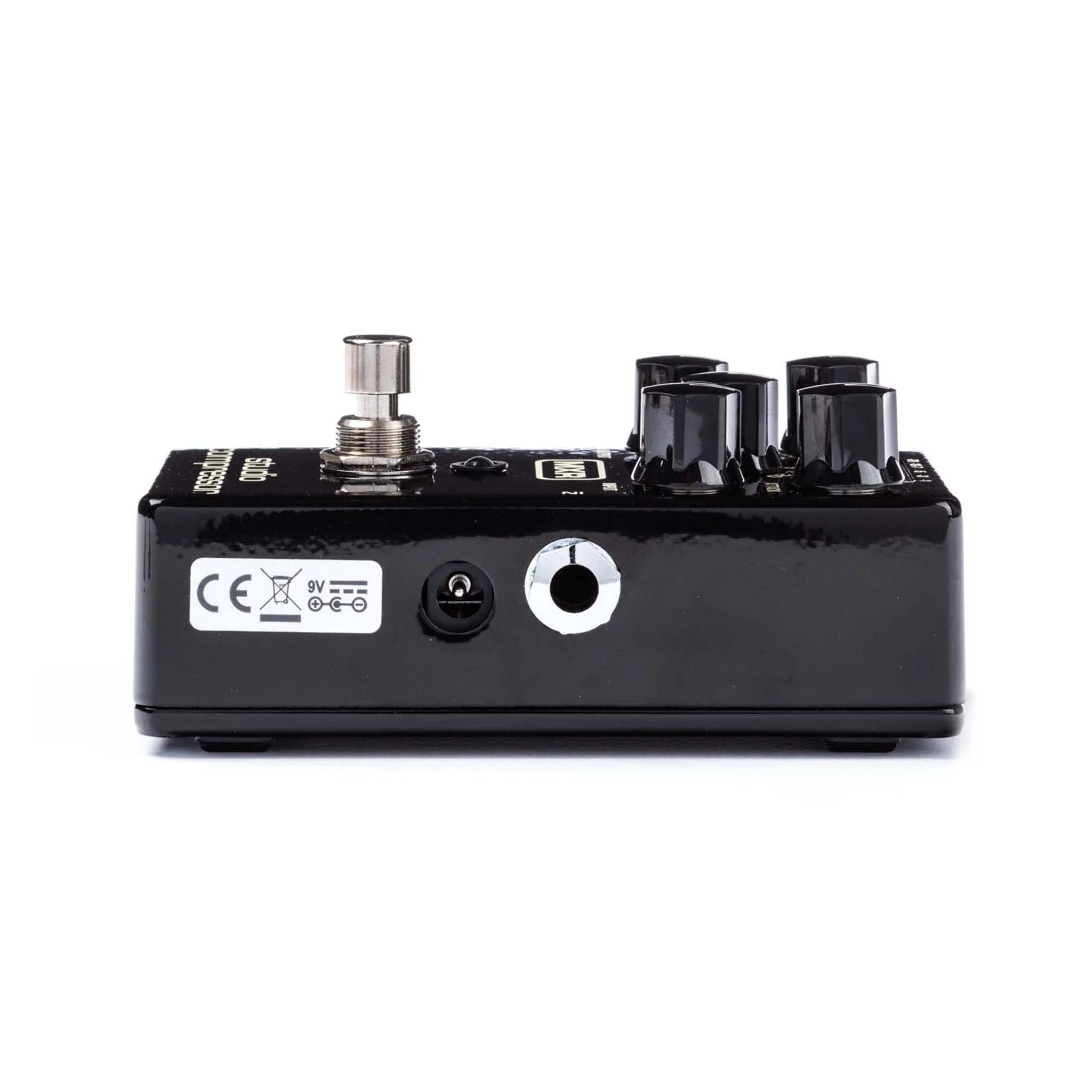

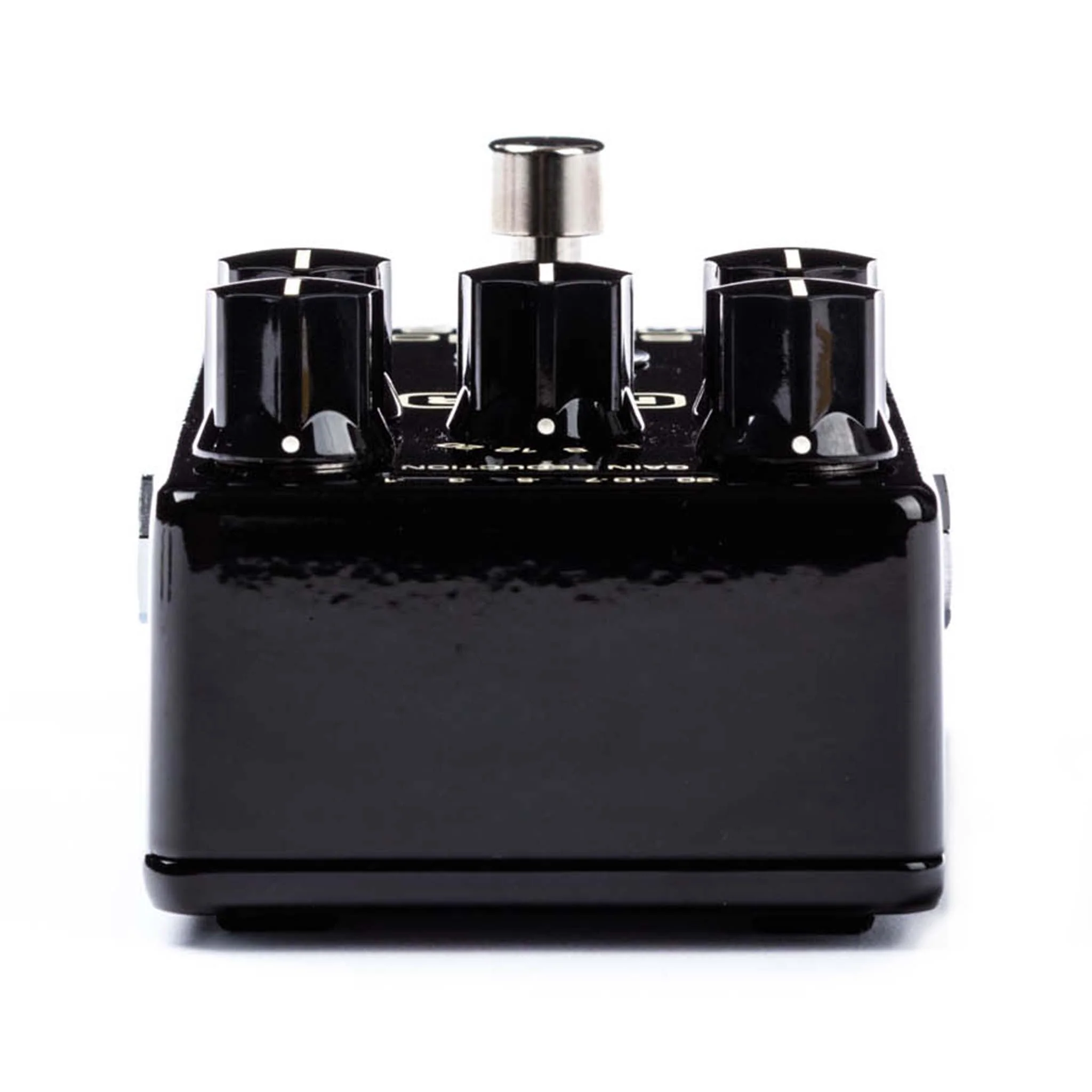

More Images
