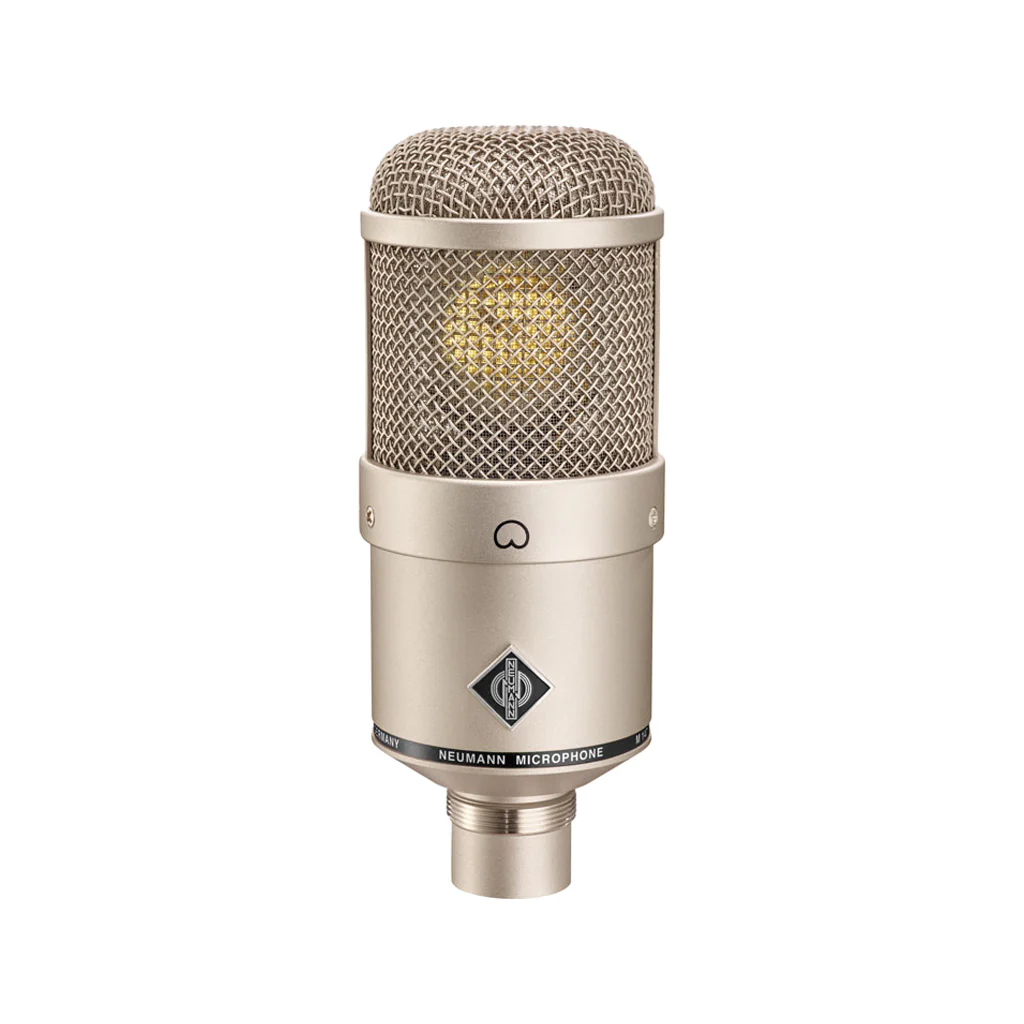

Neumann M 147 Tube Large-diaphragm Condenser Microphone
The M 147 Tube brings back the classic sound of Neumann’s famous tube microphones of the 1950s. The M 147 tube is a cardioid microphone using the same large diaphragm capsule as the legendary U 47 but combines it with an innovative tube circuit for lowest noise. Its transformerless output stage ensures superb performance at an attractive price.
Features:
- Same K47 capsule design as the legendary Neumann U 47
- Cardioid pattern
- Classic sound with unmatched presence
- Tube circuit with extremely low self-noise
- Transformerless output stage
- Comes with power supply

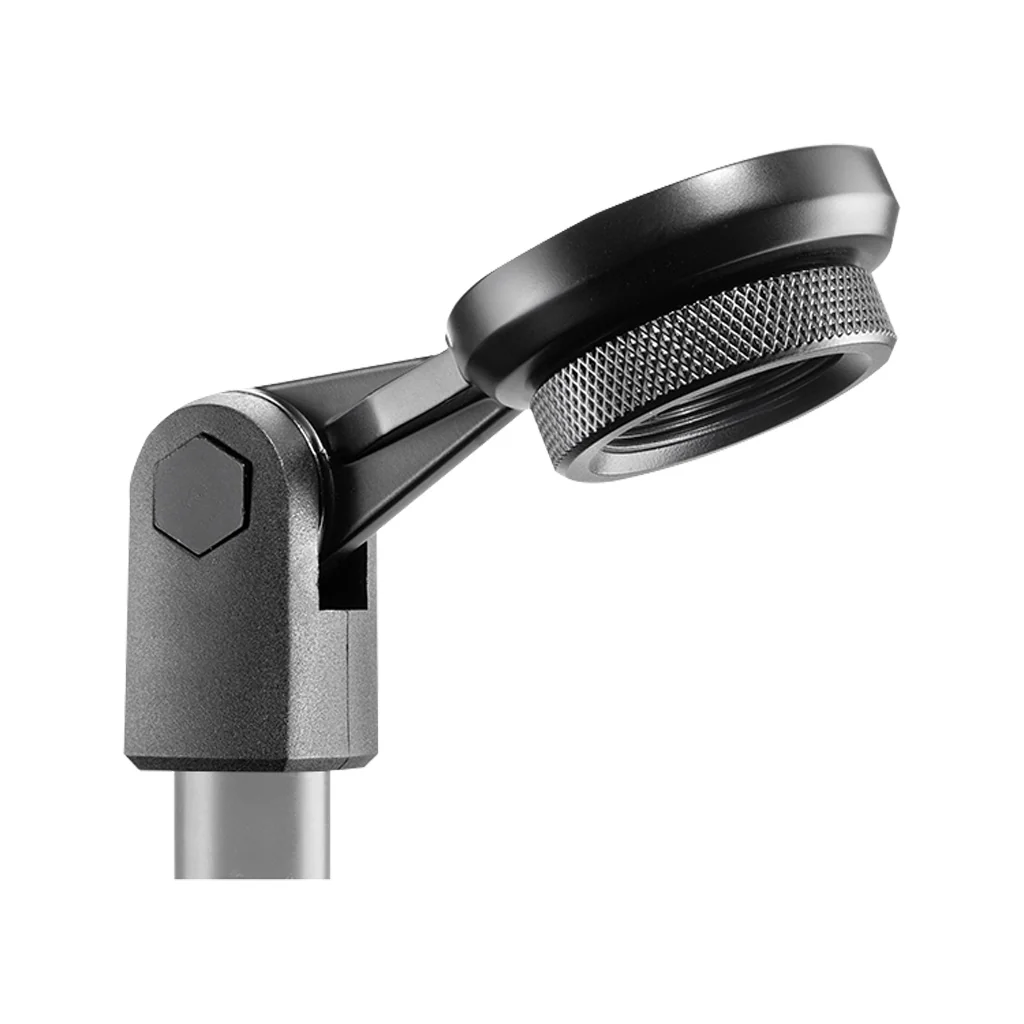

- Includes: TLM 193 Microphone, SG 2 Swivel Mount, Wooden Box
Specifications:
- Acoustic Operating Principle: Pressure Gradient Transducer
- Directional Pattern: Cardioid
- Frequency Range: 20 Hz - 20 kHz
- Sensitivity at 1 kHz into 1 kΩ: 20 mV/Pa
- Rated Impedance: 50 Ω
- Rated Load Impedance: 1000 Ω
- Power Supply: N 149 A
- Supply Voltage: 48 V ± 4V
- Connector: DIN 8 F, XLR 3 F (power supply)
- Dimensions: ø 57 mm (Diameter) x 142 mm (Length)
- Weight: 460 g
Original: $3,705.38
-65%$3,705.38
$1,296.88More Images
Neumann M 147 Tube Large-diaphragm Condenser Microphone
The M 147 Tube brings back the classic sound of Neumann’s famous tube microphones of the 1950s. The M 147 tube is a cardioid microphone using the same large diaphragm capsule as the legendary U 47 but combines it with an innovative tube circuit for lowest noise. Its transformerless output stage ensures superb performance at an attractive price.
Features:
- Same K47 capsule design as the legendary Neumann U 47
- Cardioid pattern
- Classic sound with unmatched presence
- Tube circuit with extremely low self-noise
- Transformerless output stage
- Comes with power supply
- Includes: TLM 193 Microphone, SG 2 Swivel Mount, Wooden Box
Specifications:
- Acoustic Operating Principle: Pressure Gradient Transducer
- Directional Pattern: Cardioid
- Frequency Range: 20 Hz - 20 kHz
- Sensitivity at 1 kHz into 1 kΩ: 20 mV/Pa
- Rated Impedance: 50 Ω
- Rated Load Impedance: 1000 Ω
- Power Supply: N 149 A
- Supply Voltage: 48 V ± 4V
- Connector: DIN 8 F, XLR 3 F (power supply)
- Dimensions: ø 57 mm (Diameter) x 142 mm (Length)
- Weight: 460 g
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The M 147 Tube brings back the classic sound of Neumann’s famous tube microphones of the 1950s. The M 147 tube is a cardioid microphone using the same large diaphragm capsule as the legendary U 47 but combines it with an innovative tube circuit for lowest noise. Its transformerless output stage ensures superb performance at an attractive price.
Features:
- Same K47 capsule design as the legendary Neumann U 47
- Cardioid pattern
- Classic sound with unmatched presence
- Tube circuit with extremely low self-noise
- Transformerless output stage
- Comes with power supply
- Includes: TLM 193 Microphone, SG 2 Swivel Mount, Wooden Box
Specifications:
- Acoustic Operating Principle: Pressure Gradient Transducer
- Directional Pattern: Cardioid
- Frequency Range: 20 Hz - 20 kHz
- Sensitivity at 1 kHz into 1 kΩ: 20 mV/Pa
- Rated Impedance: 50 Ω
- Rated Load Impedance: 1000 Ω
- Power Supply: N 149 A
- Supply Voltage: 48 V ± 4V
- Connector: DIN 8 F, XLR 3 F (power supply)
- Dimensions: ø 57 mm (Diameter) x 142 mm (Length)
- Weight: 460 g
