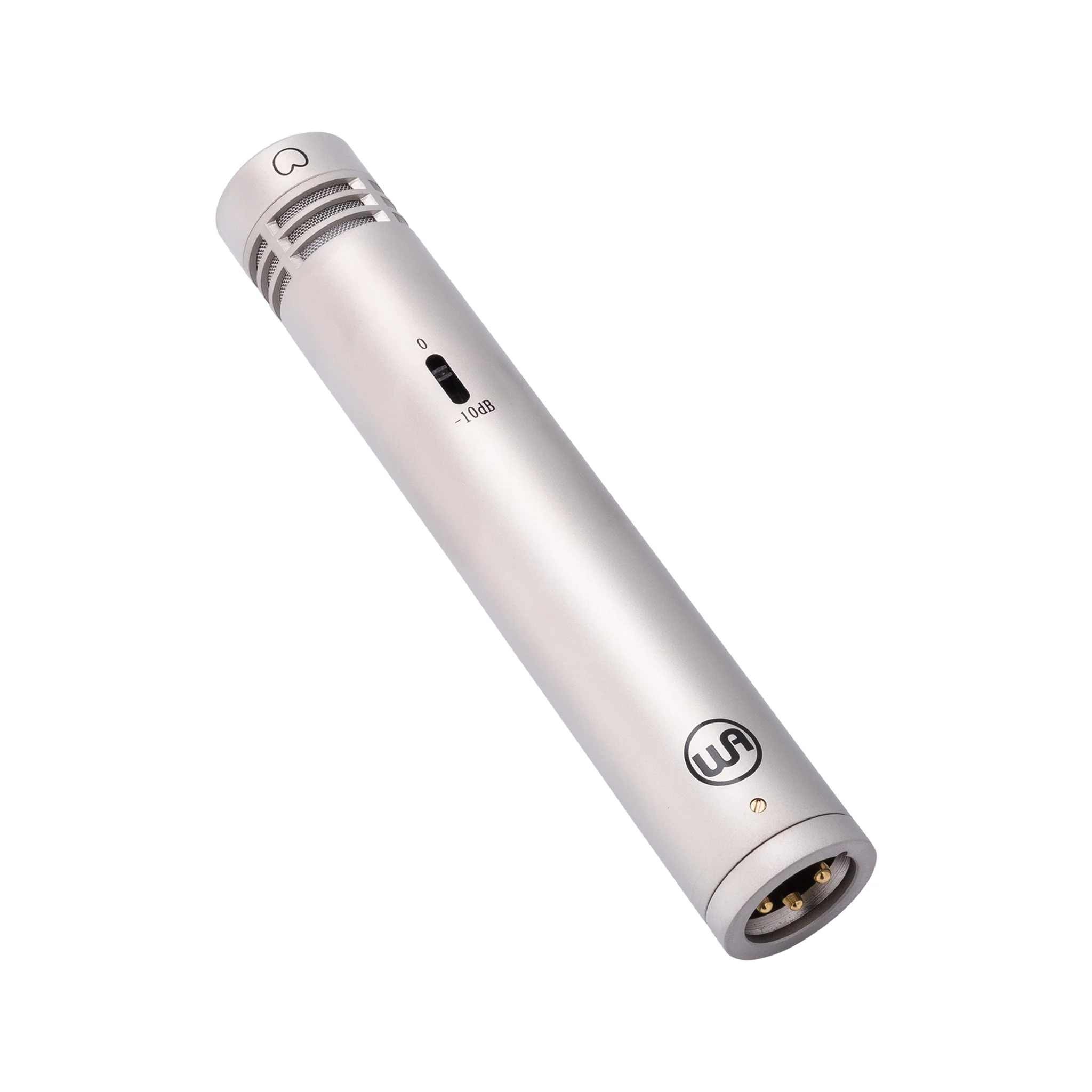

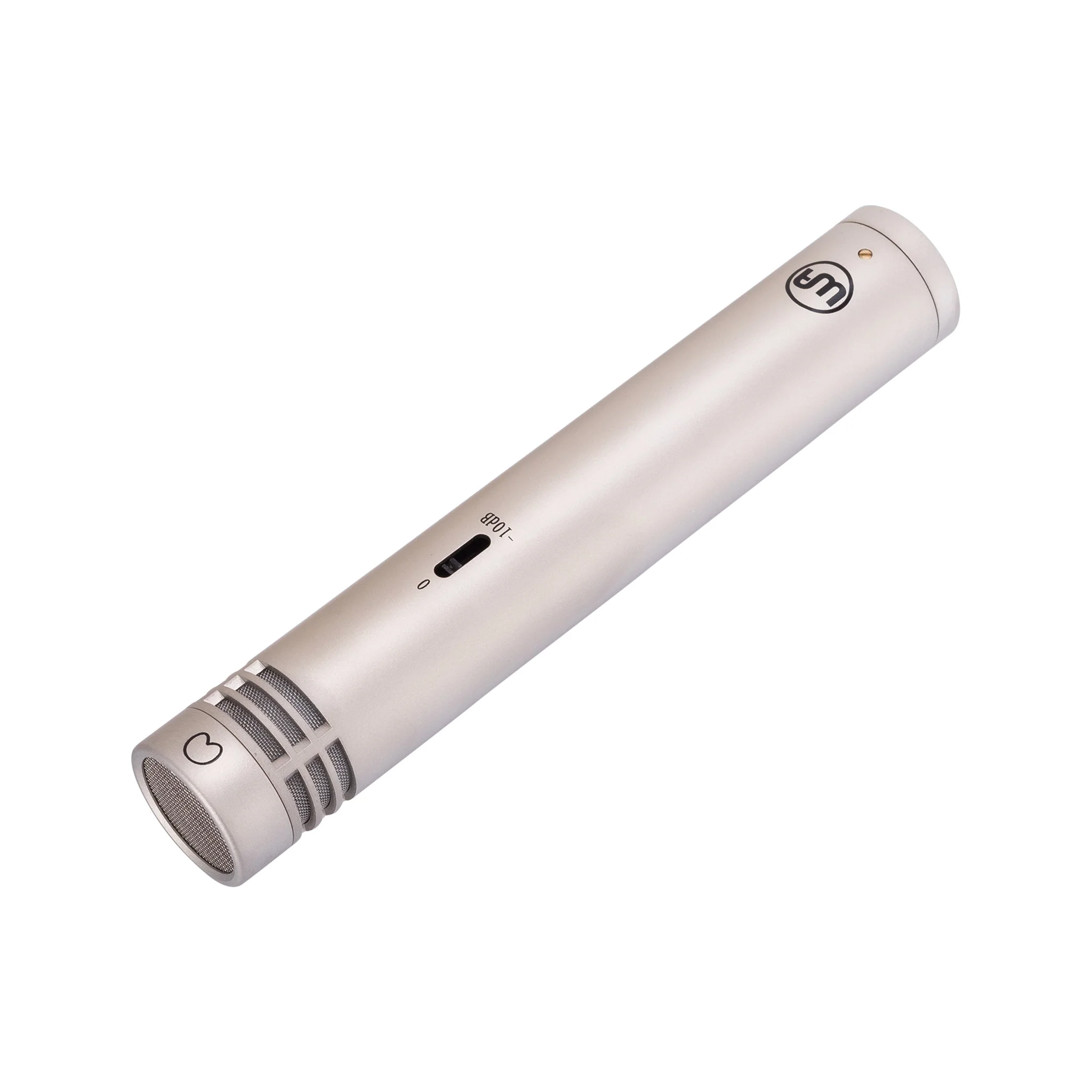

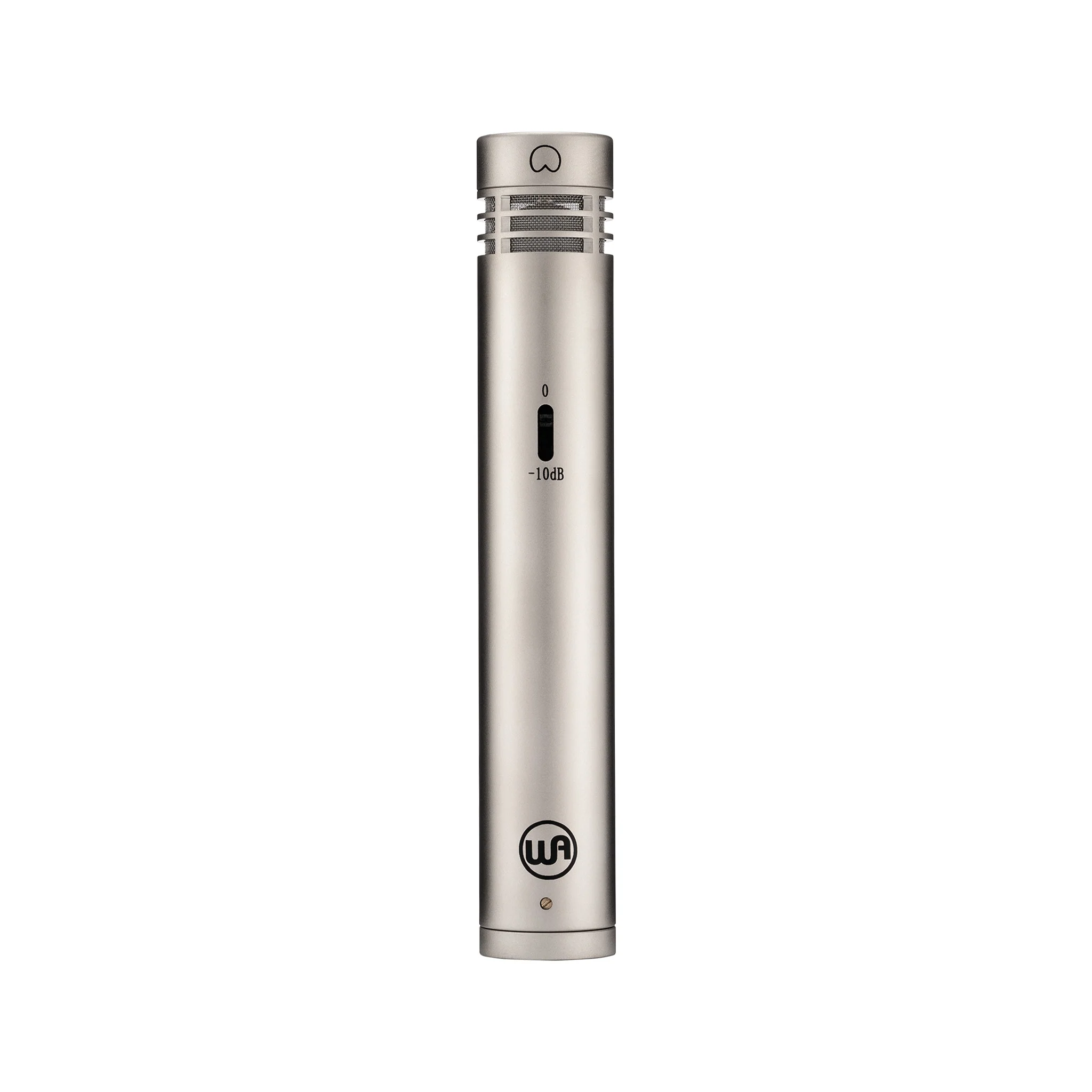

Warm Audio WA-84 Small-Diaphragm Condenser Microphone, Nickel
The WA-84 is a small diaphragm condenser microphone based on classic microphone circuitry. The WA-84 is a fully discrete Class A design that utilizes a CineMag USA transformer, polystyrene and Wima capacitors and a Fairchild FET. The WA-84 is designed for pro studio, home studio, live, and broadcast applications and sounds great on a variety of instruments and sources, such as; acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass & woodwind instruments, and an array of other sources. The WA-84 has a very LARGE sound for it’s small size and uniquely uses a heavy Nickel CineMag transformer in it’s signal path to warm up and ENLARGE sound sources. Small diaphragm condenser microphones have widely moved to transformer-less technology in recent years for ease of design and a lower-cost manufacturing process. When designing the WA-84 we chose to go the extra mile and tackle a more boutique design known for it’s it’s crystal clear, yet smooth, LARGE sound. We are proud to offer something special to the market-place by using large core transformer technology (CineMag USA) in a small diaphragm condenser microphone package. The result is a circuit that we feel sounds absolutely gorgeous and goes the extra mile in terms of signal integrity and smooth boutique tone.
Features:
- Small Diaphragm Condenser Microphone
- Utilises a CineMag USA Transformer
- Fully Discrete, Class A design, utilising a CineMag USA transformer, Polystyrene and Wima capacitors and a Fairchild FET
- Vintage Capsule Reproduction
- 48V Phantom powered
Specifications:
- Directional Pattern: Cardioid
- Frequency Range: 20Hz - 20kHz
- Sensitivity: -39dB or 11mV/Pa @ 1kHz
- Output Impedance: 200Ω
- Rated Load Impedance: ≥1kΩ
- Pad: 0db or -10db
- Maximum SPL: 123/133dB @ 1kHz, 0.5% THD, 0/-10dB
- S/N Ratio: 78dBA (IEC651)
- Equivalent Noise: 16dBA (IEC651)
- Dynamic Range: 107dBA (IEC651)
- Connector: 3-Pin Gold-Plated XLR

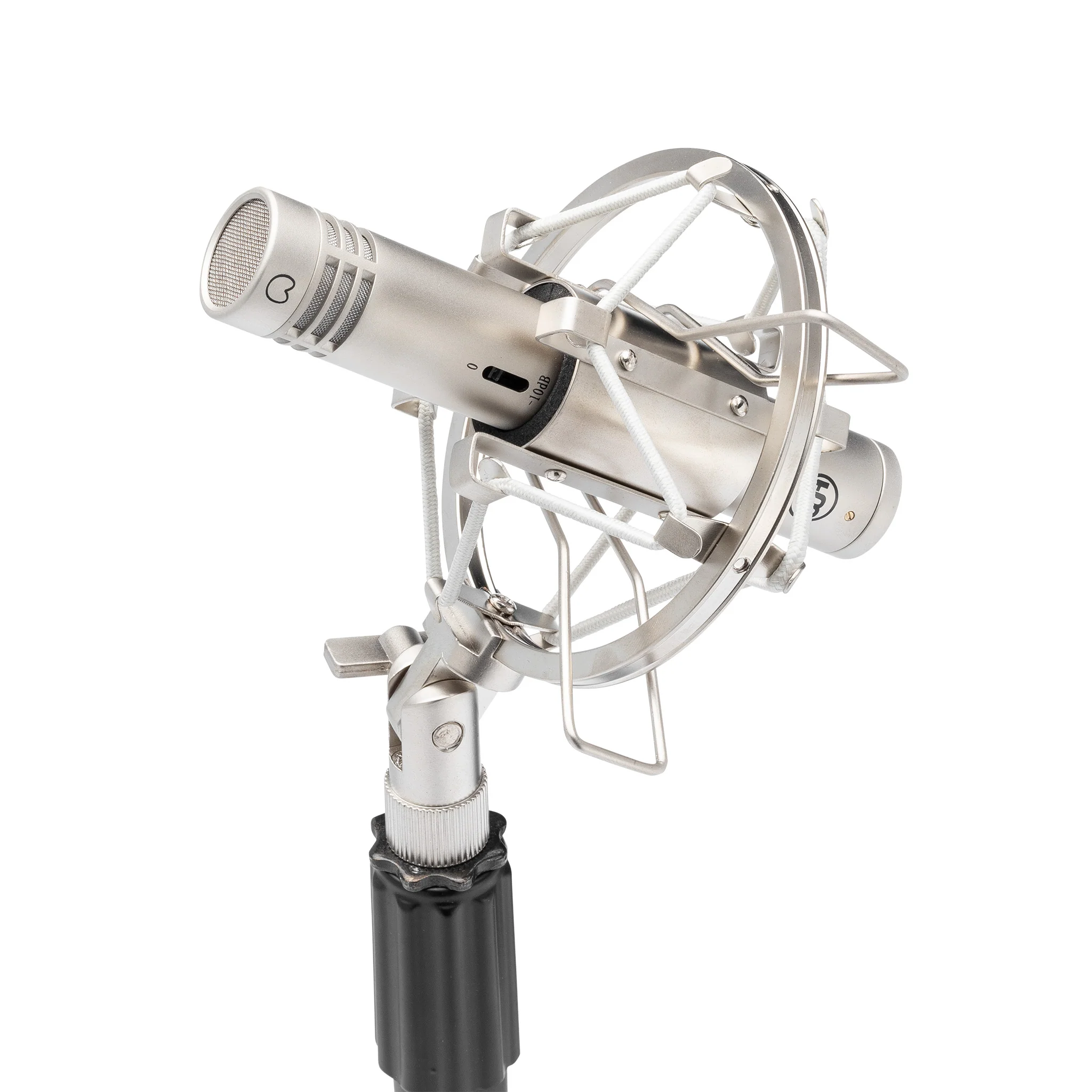

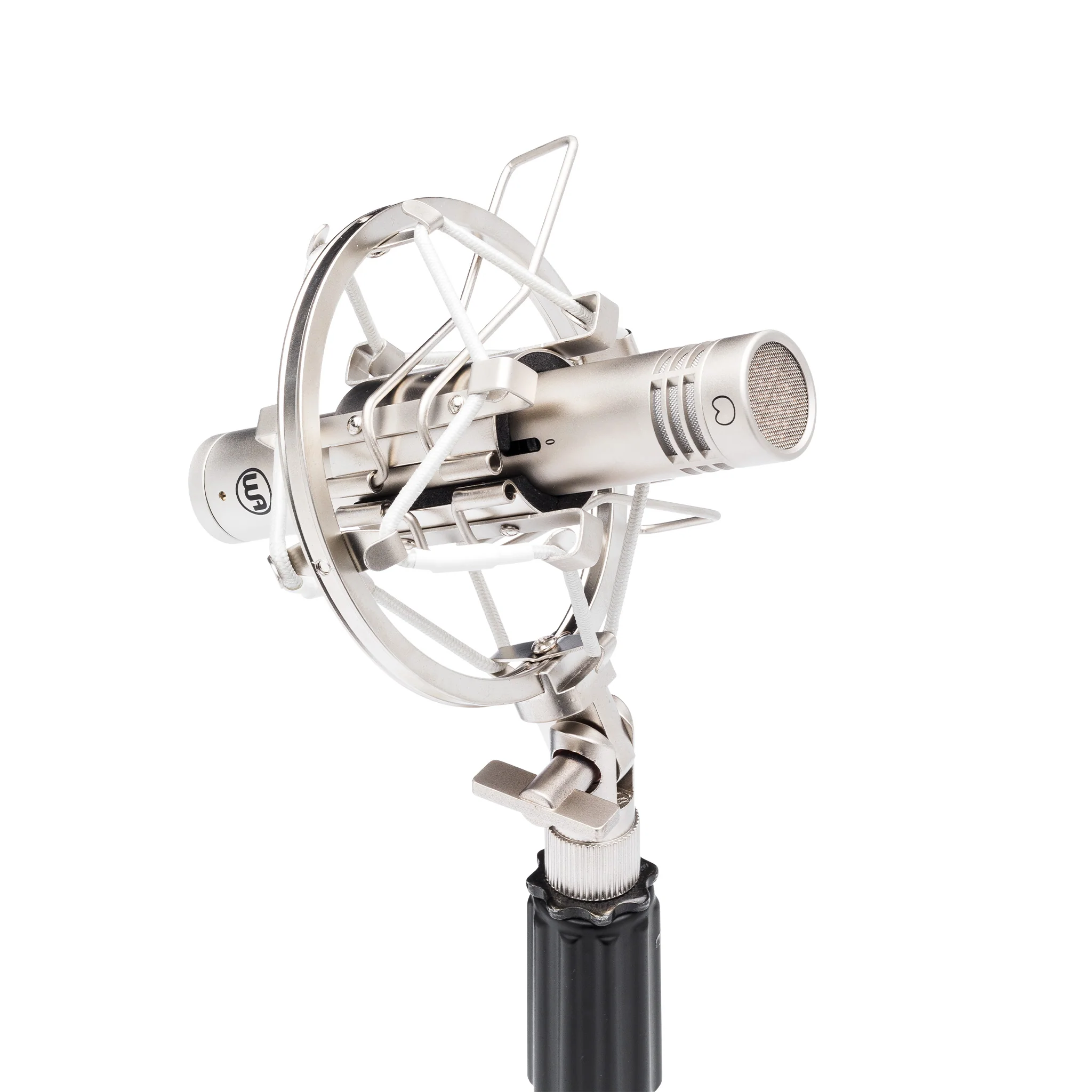

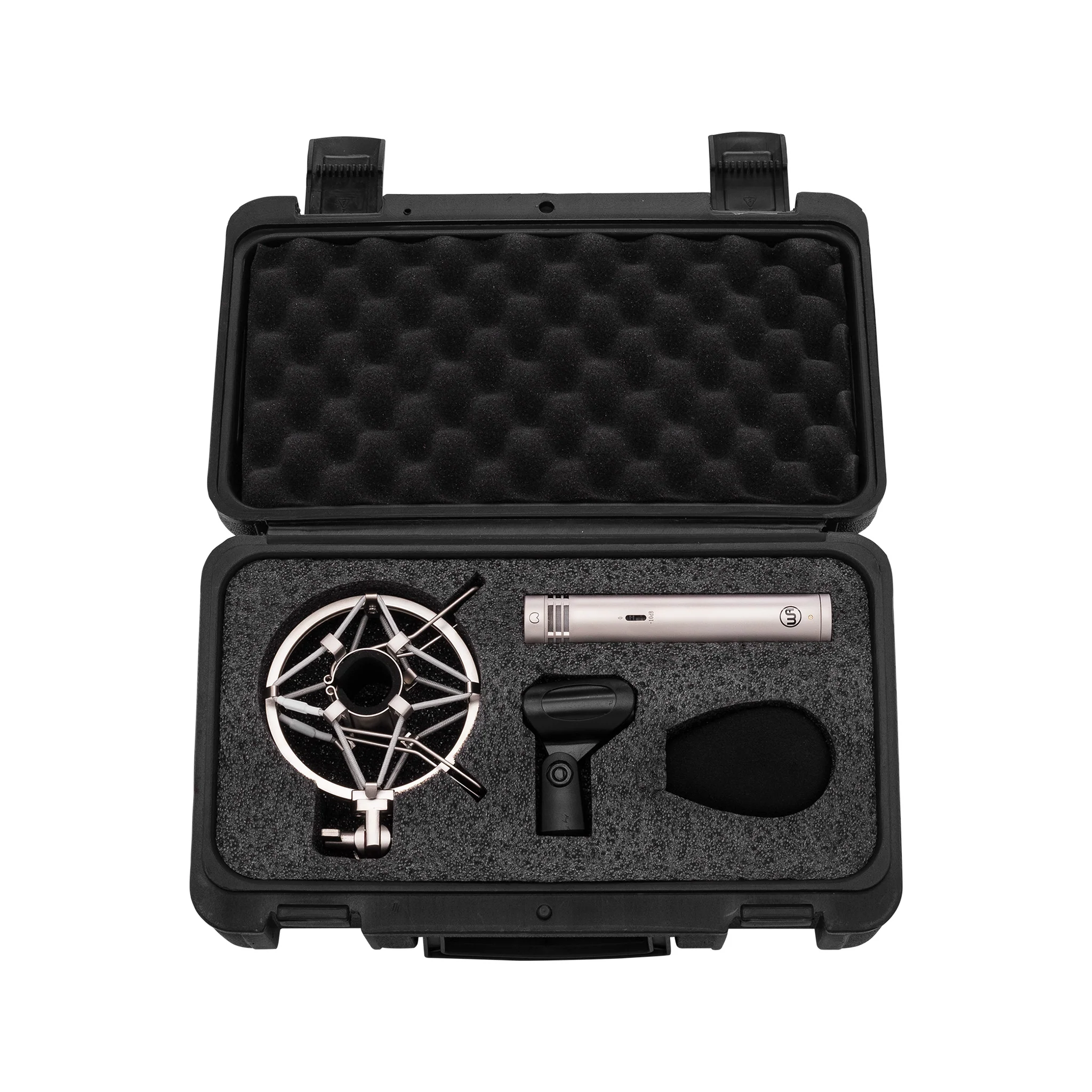

- Includes: Microphone, Shock-mount, Mic Clip, Windscreen, Carrying Case
- Dimensions: 22mm (D) x 132mm (L)
- Weight: 122g
Original: $447.99
-65%$447.99
$156.80More Images
Warm Audio WA-84 Small-Diaphragm Condenser Microphone, Nickel
The WA-84 is a small diaphragm condenser microphone based on classic microphone circuitry. The WA-84 is a fully discrete Class A design that utilizes a CineMag USA transformer, polystyrene and Wima capacitors and a Fairchild FET. The WA-84 is designed for pro studio, home studio, live, and broadcast applications and sounds great on a variety of instruments and sources, such as; acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass & woodwind instruments, and an array of other sources. The WA-84 has a very LARGE sound for it’s small size and uniquely uses a heavy Nickel CineMag transformer in it’s signal path to warm up and ENLARGE sound sources. Small diaphragm condenser microphones have widely moved to transformer-less technology in recent years for ease of design and a lower-cost manufacturing process. When designing the WA-84 we chose to go the extra mile and tackle a more boutique design known for it’s it’s crystal clear, yet smooth, LARGE sound. We are proud to offer something special to the market-place by using large core transformer technology (CineMag USA) in a small diaphragm condenser microphone package. The result is a circuit that we feel sounds absolutely gorgeous and goes the extra mile in terms of signal integrity and smooth boutique tone.
Features:
- Small Diaphragm Condenser Microphone
- Utilises a CineMag USA Transformer
- Fully Discrete, Class A design, utilising a CineMag USA transformer, Polystyrene and Wima capacitors and a Fairchild FET
- Vintage Capsule Reproduction
- 48V Phantom powered
Specifications:
- Directional Pattern: Cardioid
- Frequency Range: 20Hz - 20kHz
- Sensitivity: -39dB or 11mV/Pa @ 1kHz
- Output Impedance: 200Ω
- Rated Load Impedance: ≥1kΩ
- Pad: 0db or -10db
- Maximum SPL: 123/133dB @ 1kHz, 0.5% THD, 0/-10dB
- S/N Ratio: 78dBA (IEC651)
- Equivalent Noise: 16dBA (IEC651)
- Dynamic Range: 107dBA (IEC651)
- Connector: 3-Pin Gold-Plated XLR
- Includes: Microphone, Shock-mount, Mic Clip, Windscreen, Carrying Case
- Dimensions: 22mm (D) x 132mm (L)
- Weight: 122g
