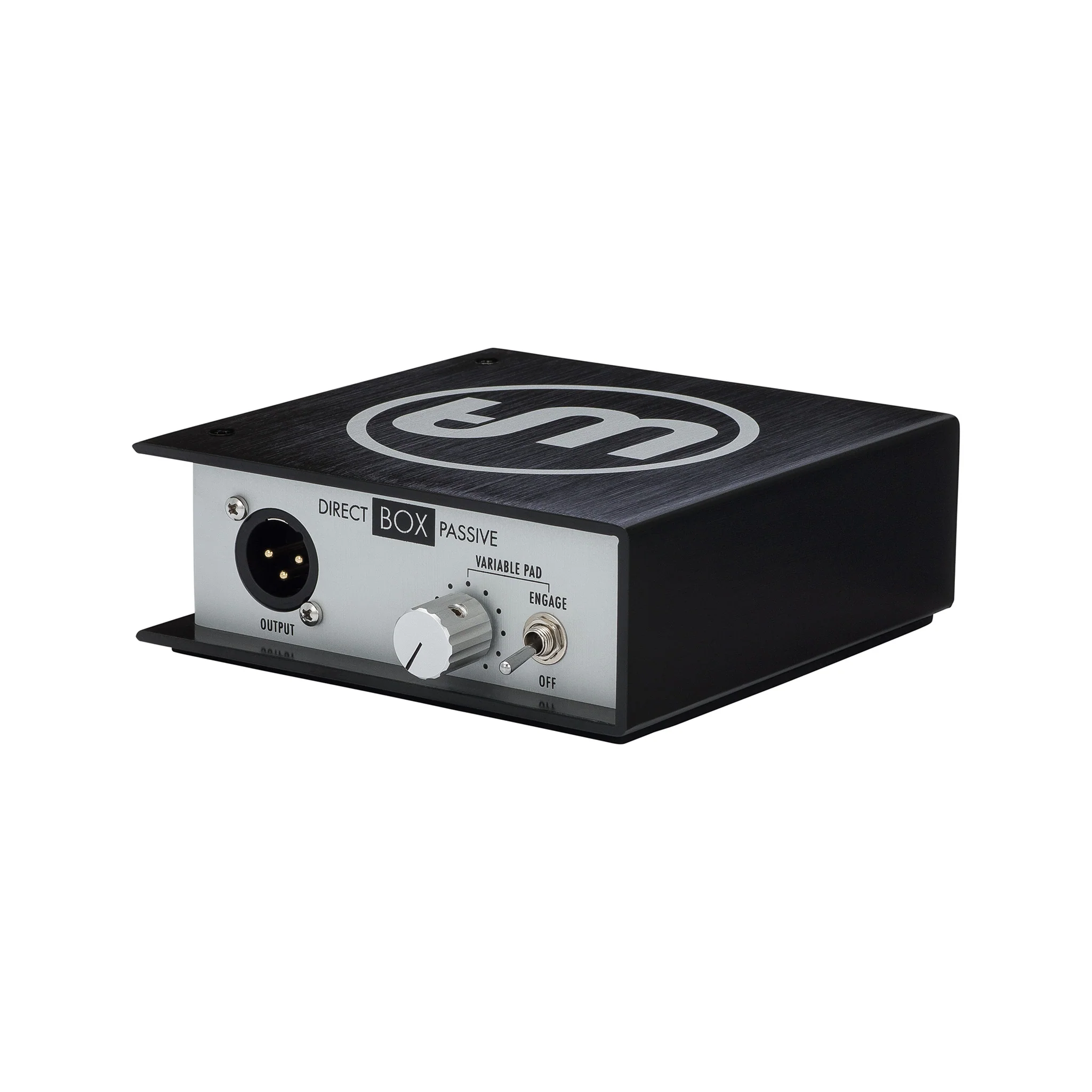

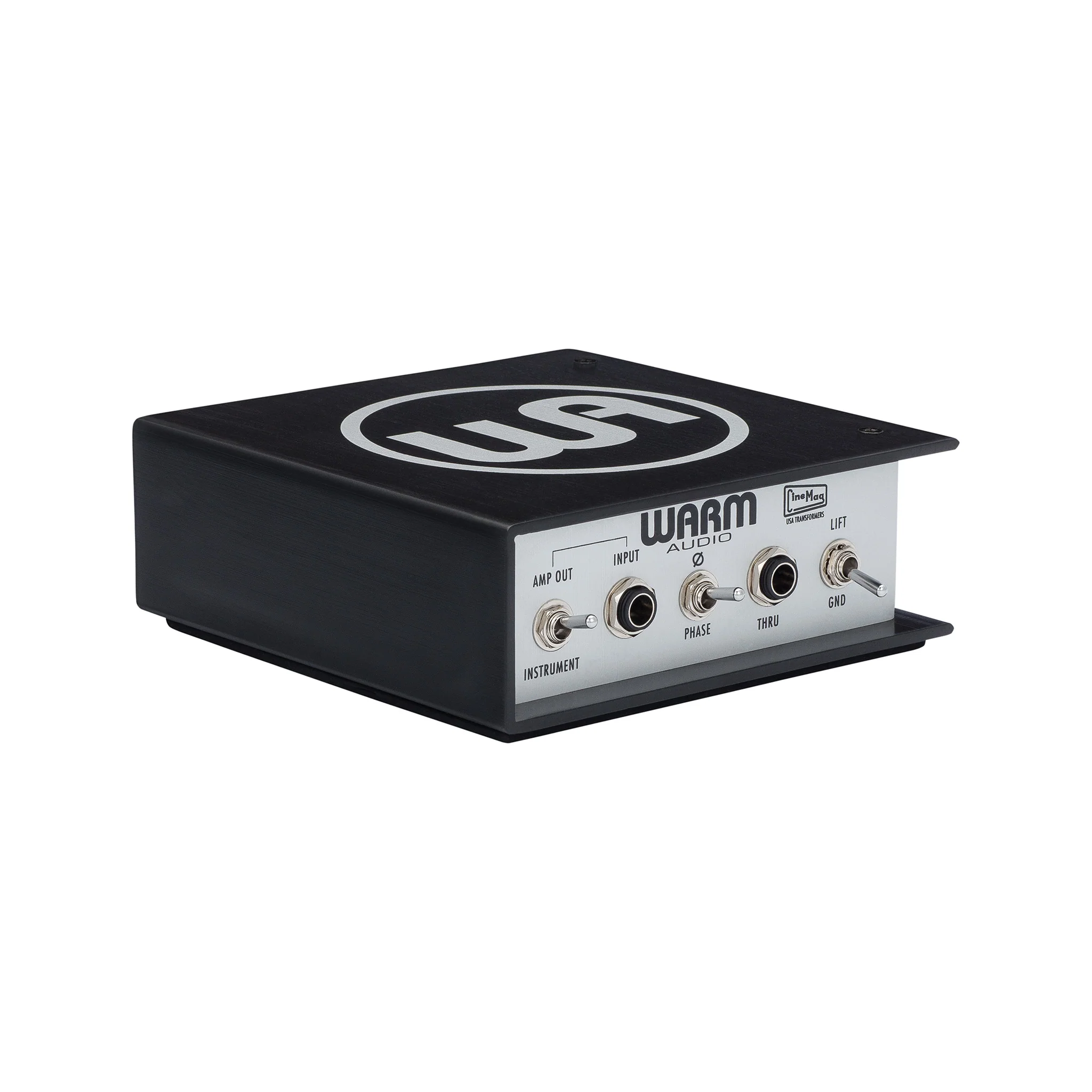

Warm Audio WA-DI-P Passive Direct Box
Warm Audio Stereo DIs include passive two-channel direct boxes designed for stereo instruments, including keyboards, synthesizers, guitar processors, and stereo pedalboards. Built with premium CineMag USA transformers, both models preserve the tonal character of your instrument while delivering clean balanced signals to mixers, audio interfaces, and PA systems. A negative (3 - 30dB) pad helps dial in signal volume, and a ground/lift switch helps eliminate ground-loop noise. The Passive Stereo DI offers transformer-isolated signal conversion ideal for high-output sources like drum machines, playback rigs, and modelers feeding FOH consoles or recording systems.
Features:
- Converts Instruments To Mic-Level Signals Without Signal Degradation
- Ideal Solution For Plugging Your Instrument Direct Into Any Mic Pre
- Rugged Aluminum Construction
Specifications:
- Frequency Response: 10 Hz To 100kHz +/- 0.5db
- Balanced Output: 600 Ohms, Mic Level
- Input Impedance: 1 Meg Ohms
- Active THD: .01% From 20 Hz To 50 Hz. Less than .003% From 50 Hz To 20 kHz
- Passive THD: .01% From 20Hz To 50 Hz. Less Than .004% From 50 Hz To 20 kHz
- Pad: Variable From -3dB To -30dB
- Dimensions: 5" X 5-1/2" X 2-7/8"
- Weight: 0.8 kg (1.76 lbs)
Original: $184.92
-65%$184.92
$64.72More Images
Warm Audio WA-DI-P Passive Direct Box
Warm Audio Stereo DIs include passive two-channel direct boxes designed for stereo instruments, including keyboards, synthesizers, guitar processors, and stereo pedalboards. Built with premium CineMag USA transformers, both models preserve the tonal character of your instrument while delivering clean balanced signals to mixers, audio interfaces, and PA systems. A negative (3 - 30dB) pad helps dial in signal volume, and a ground/lift switch helps eliminate ground-loop noise. The Passive Stereo DI offers transformer-isolated signal conversion ideal for high-output sources like drum machines, playback rigs, and modelers feeding FOH consoles or recording systems.
Features:
- Converts Instruments To Mic-Level Signals Without Signal Degradation
- Ideal Solution For Plugging Your Instrument Direct Into Any Mic Pre
- Rugged Aluminum Construction
Specifications:
- Frequency Response: 10 Hz To 100kHz +/- 0.5db
- Balanced Output: 600 Ohms, Mic Level
- Input Impedance: 1 Meg Ohms
- Active THD: .01% From 20 Hz To 50 Hz. Less than .003% From 50 Hz To 20 kHz
- Passive THD: .01% From 20Hz To 50 Hz. Less Than .004% From 50 Hz To 20 kHz
- Pad: Variable From -3dB To -30dB
- Dimensions: 5" X 5-1/2" X 2-7/8"
- Weight: 0.8 kg (1.76 lbs)
