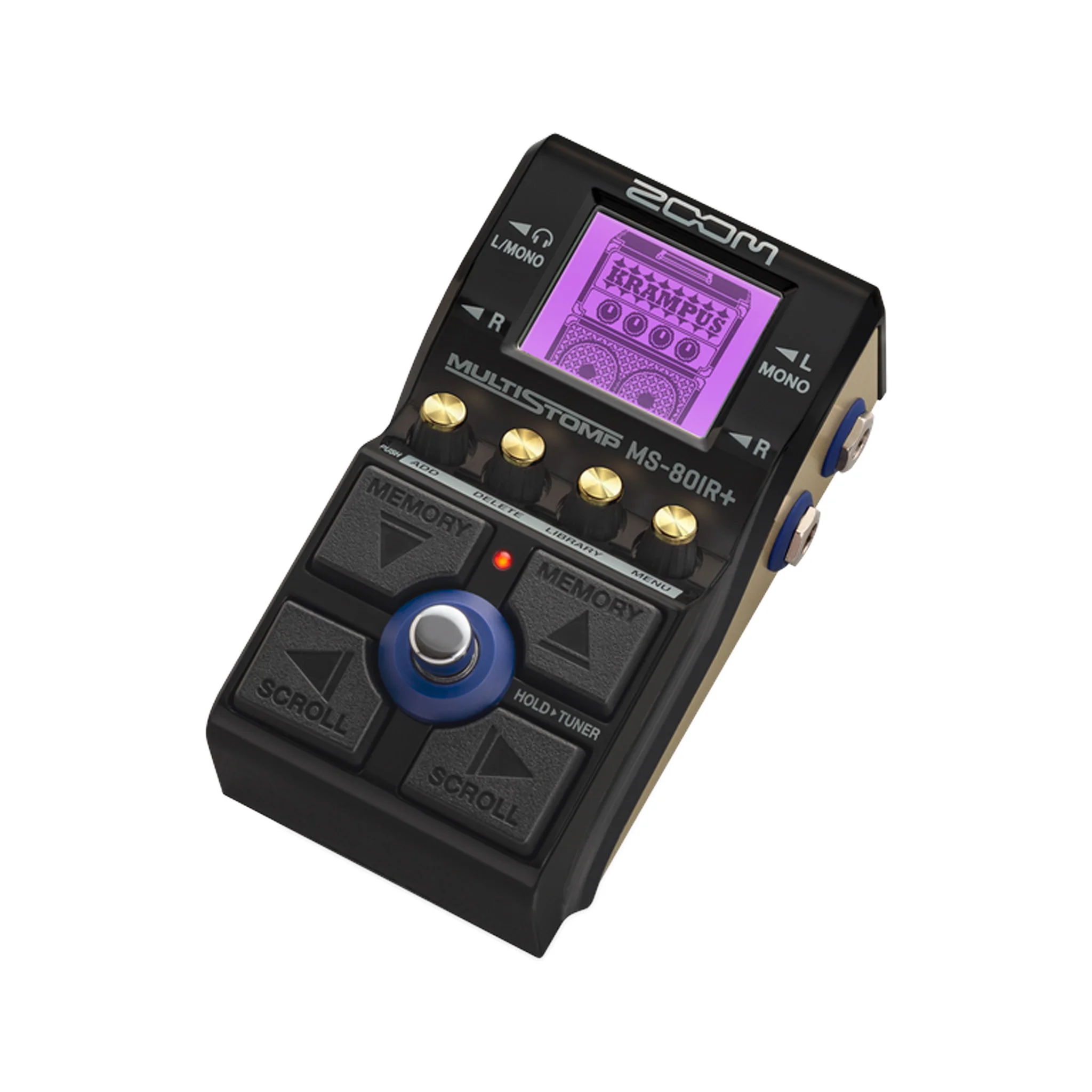

Zoom MS-80 IR+ Amp Sim and Multi-Effects Pedal

The MS-80IR+ gives guitarists an incredible assortment of amps created using the latest in IR and modelling technology.It comes fully stacked with 23 of the world’s most revered amps and cabs.

Features:

• 23 guitar Amp/Cabinet models developed with Multi-Layer IR technology
• 5 Studio Sounds effects to add natural reverb to your tone
• 12 additional effects, including noise gates, EQ’s, and delays
• Create and save 80 unique memory patches
• 4x Cross Key switches (MEMORY / SCROLL) for easy operation by foot
• Stereo input (both active and passive instruments supported)
• Stereo output for connection to amps, speaker or headphones
• Output splitting lets you send signals with and without IR’s simultaneously
• Chromatic tuner supports all standard guitar tunings, including open & drop tunings
• 2-IN / 2-OUT Audio Interface function (via built-in USB-C port)
• IR load function for speaker cabinet simulation
• Runs on 2 AA batteries or AC Adapter
• Handy Guitar Lab for MS-80IR+ App (iOS)

Specifications:

• Max. No. of Simultaneous Effects: 1 Amplifier, 1 Studio Ambience and 1 Other Effect
• User Patch Memories: 80
• Sampling Frequency: 44.1 kHz
• A/D Conversion: 24-bit 128× oversampling
• D/A Conversion: 24-bit 128× oversampling
• Signal Processing: 32-bit
• Frequency Response: 20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10kΩ load)
• Display: 160×128 dot-matrix LCD
• Inputs: L/R Standard mono phone jacks −20 dBu Rated input level, 470 kΩ Input impedance (line)
• Outputs: L/MONO/headphone Standard stereo phone jacks (combined line/headphone), R Standard mono phone jacks
• Power: AC adapter: 9V DC 500mA center negative (ZOOM AD-16), 2 AA batteries (alkaline, lithium or rechargeable NiMH batteries), USB bus power is supported.
• USB: USB 2.0 Type-C, 2 in 2 out
• Dimensions: 133 mm (D) × 79 mm (W) × 61 mm (H)
• Weight: 369 g (excluding batteries), 416 g (including batteries)
